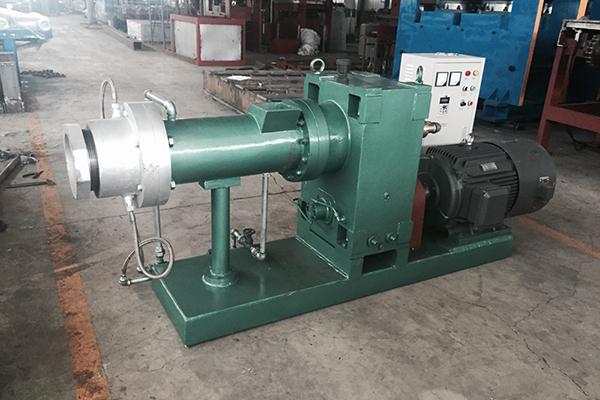

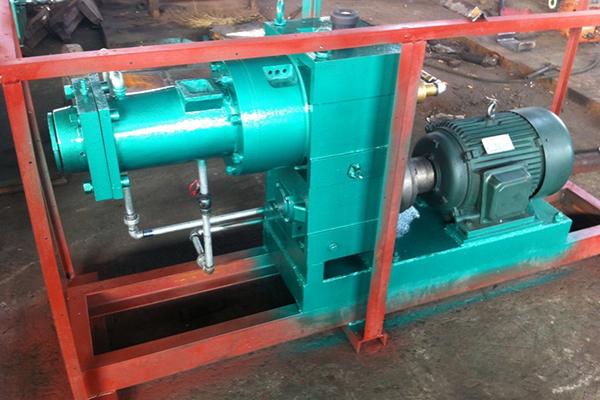

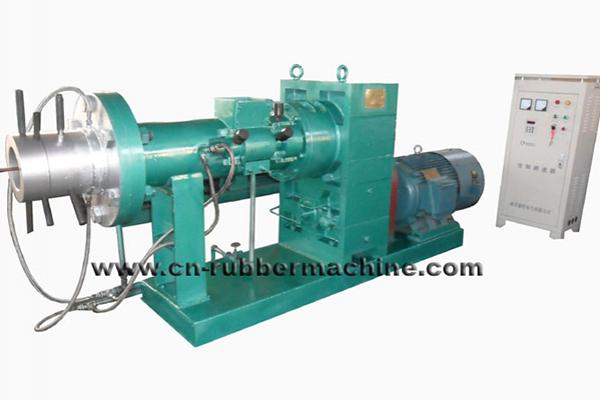

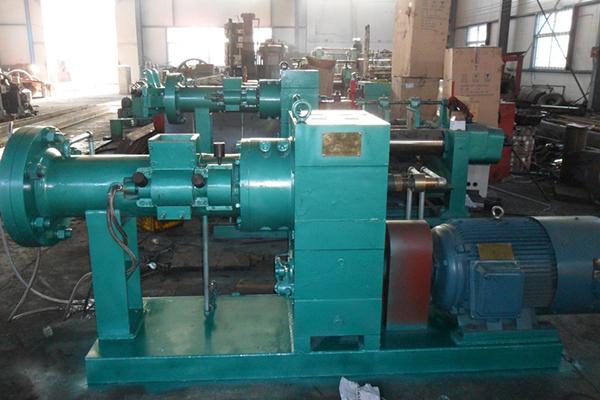

Hot Feed Rubber Extruder | Rubber Machinery

Application
Hot feed rubber extruders are used for extruding various shapes of rubber semi-finished products. They feature a wide application range, including the production of O-type rings, seal rings, sealing elements, rubber blanket, rubber strips, waterstops, rubber pads, rubber hoses, rubber belts, automotive accessories, household electric accessories, electric wire and cables, railway equipment, freezer accessories, tires, inner tubes, blankets, cycle tires, rubber tires, tractor tires, agricultural tires, motorcycle tires, light truck tires, engineering tires, special-purpose tires for mines, complete steel radial tires, semi-steel car tires, renovated tires, conveyor belts, transmission belts, leather belts, flat belts, rubber belts, sidewall belts, steel cord conveyor belts and other applications.

Parameters

Model Category			XJ-65	XJ-85	XJ-115	XJ-150	XJ-200	XJ-250
Screw diameter		㎜	65	85	115	150	200	250
Ratio of screw length and diameter L/D			4	4.8	4.8	4.4	4.4	4.5
Motor power		kW	7.5	15	30	55	90	110
Production capacity		㎏/h	5~80	62~270	10~420	800	150~2200	3600
Dimension	L	㎜	1594	2065	2770	3411	4549	4950
	W	㎜	604	760	655	814	1140	1150
	H	㎜	1053	1154	1350	1470	1750	1483
Weight		t	~1.2	~2.6	~4.0	~4.8	~5	~9

Description
The screw uses 38CrMoAIA materials that have undergone a tempering and surface nitriding treatment. The surface hardness is HRC60-65 and hard layer thickness is 0.4-0.6mm. The surface roughness is less than Ra0.8. Inside the screw there is a pore path for temperature control circulating water, which serves for the heating and cooling of the screw.
1. The feeding cylinder is mainly composed of the rear body, front bushing and rear bushing. The structure is a jacketed cast iron.
2. The rear body is made of cast steel. It contains a cavity where temperature control circulating water can flow through for the heating and cooling of rear body.
