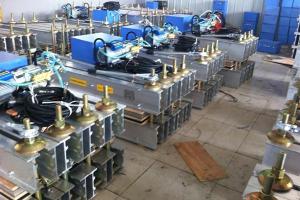

Conveyor Belt Vulcanizing Press

Applications

The conveyor belt vulcanizing press is designed for use in the production of rubber products, particularly rubber conveyor belts, automotive belts, sidewall belts, and steel wire conveyor belts.

Production line process

The fabric core rubber conveyor belt’s working process is as follows:
Rolling up the placemat → opening up with the fabric core → splicer → idler set → stretching the front clamp → main vulcanizing press →middle clamp →idler set → stretching the rear clamp →rear dragging device → patching machine → double roll recoiler

The steel cord conveyor belt’s working process is as follows:
Steel cord spindle rack → tension device → carding device → molding cart →checking the cart → front dragging device →front clamp device →main plate vulcanizing press → clamp & stretching device → rear dragging device → cutting device →recoiling device
Product description of Conveyor Belt Vulcanizing
  • Conveyor belt vulcanizing is suitable for fabric core conveyor belt plate vulcanizing with a long service life.
  • The main vulcanizing press is designed to meet GB/T3034-1999 standards.
  • Frame is constructed from Q235 steel plate.
  • Hot plate: the roughness of the working surface can be up to Ra1.6 and the temperature distribution accuracy is ±1.5℃.
  • Upper and lower mounting pad: Q235 steel plate with high process accuracy
  • Oil cylinder: the oil cylinder is produced according to ZG270-500 standards. The plunger is made from chilled cast iron. The sealing structure adopts the combination of double seal rings and scraper rings for better sealing effects.
  • Hydraulic jacking device: place four sets of hydraulic jacking devices under the lower mounting pad to ensure the horizontal elevation of the mounting pad.
  • Thermal baffle: The thermal baffle does not contain asbestos. The baffle can withstand voltage over 400kg/cm. Thermal conductivity is 0.022w/mh. Thermal resistance is 220℃~250℃. Thickness is 15mm.
  • The hydraulic system is designed according to the working process and movement requirements.
  • Complete electric control system includes electric wires, cables and a safety protection device. Mitsubishi Q series PLC is equipped with touch screen control. Other normal elements adopt Schneider products. Breaker is equipped with overload protection. Relay is equipped with an indicator light.
Our advantage

Plate vulcanizing press standards: GB／T9002－ISO9002－94、GB／T7984－2001、GB／T9770－2001、HG/T3034－1999
Shun Cheong is a trusted manufacturer of rubber processing machines that are applicable across a wide range of industrial uses. Our Banbury rubber mixers, rubber mixing mills, vulcanizing presses and other rubber processing machinery is utilized by industrial operations such as tire producers, recycling plants, and rubber belt manufacturers. This wide array of end users all rely on Shun Cheong products to get difficult jobs done right the first time. We are proud they trust us and our company never stops innovating and operating with high standards in order to be worthy of that trust.
