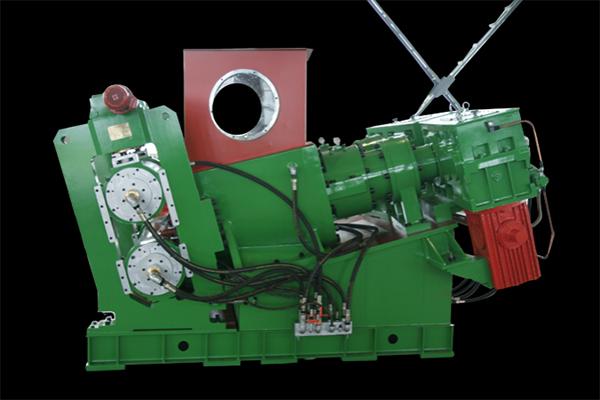

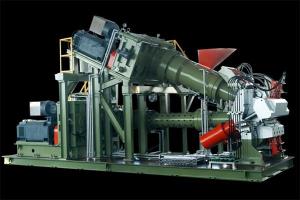

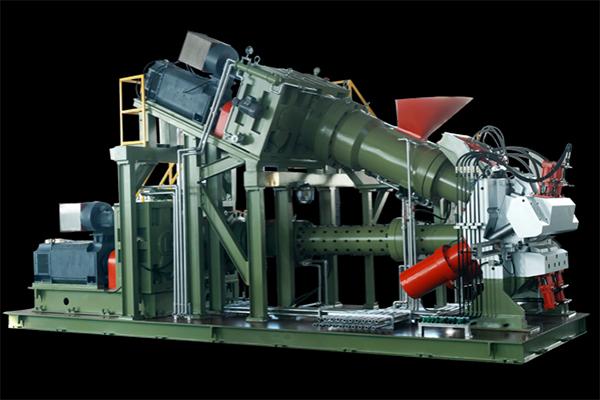

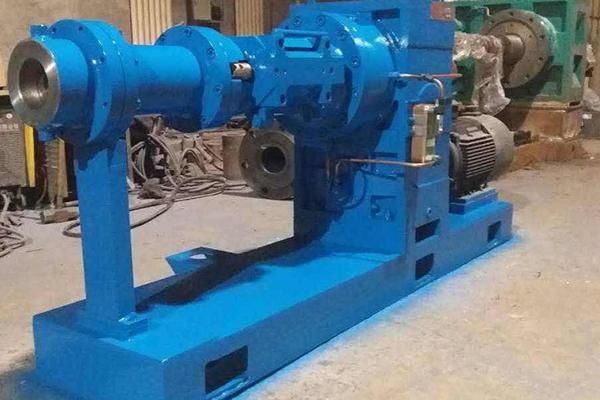

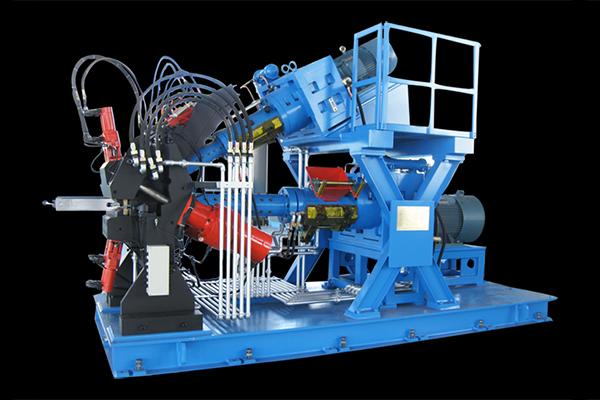

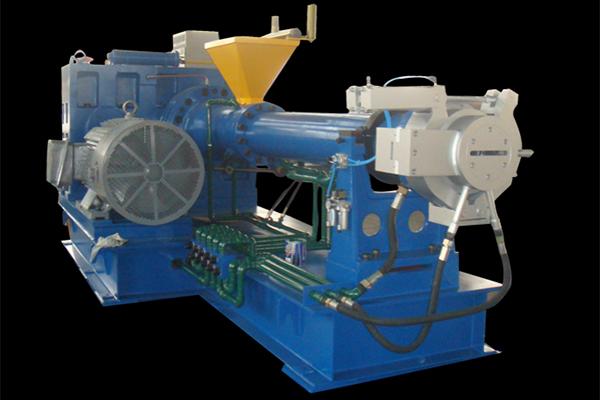

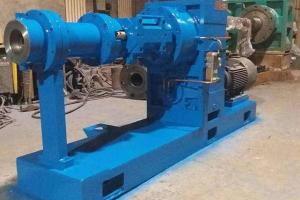

Cold Feed Rubber Extruder | Rubber Machinery

Application
The cold feed rubber extruder is designed and manufactured to produce semi-finished rubber products of various shapes.
The extrusion equipment is widely used for the production of O-rings, seal rings, sealing elements, rubber sheets, rubber strips, water stops, rubber pads, rubber hoses, rubber belts, cables, railway equipment, tires, inner tubes, and many more.
The strength of the machinery comes from the high level of efficiency and volume of output.

Parameters

Model Category		XJW-60×15D	XJW-90×12D	XJW-120×12D	XJW-150×16D
Screw diameter	mm	60	90	120	150
Ratio of screw length and diameter L/D		15	12	12	16
Maximum screw rotating speed	r/min	79	60	50	43
Feeder dimension	mm	80×55	120×80	160×100	180×125
Extruder model		Y180L-4	Y280S-6	Z4-225-11	Z4-250-31
Power	Kw	22	45	75	132
Center height	mm	1200	900	1000	1000
No. of circulating hot water zones		3	3	3	4
Total heating power of circulating hot water	Kw	25	35	35	60
Maximum production capacity	Kg/h	180	360	800	1500
Dimension	mm	2700×780×1560	2280×1000×1370	2789×1318×1706	6000×930×1545
Weight	Kg	2000	2500	4850	9000

Product description
1. The screw is made from 38CrMoAIA materials with nitride depth 0.5-0.7mm and hardness HV950-1000.
2. The extruder’s feeding cylinder is composed of a rear body, front bushing and rear bushing. The structure is a jacketed cast iron style.
1. Rear body utilizes cast steel. It contains a cavity where temperature control circulating water can flow through for the cooling of the rear body. In addition, bushing and feeding devices are also placed within the rear body.
2. Bushings are made from 38CrMoAIA materials. The internal surface hardness is HRC65-70 with a hard layer thickness of 0.5-0.7mm
3. The feeding device is composed of a feeding roller, feeding roller cover, bearing support, gear pair, bearing, and squeegee knife.
Feeding roller surface is treated with a hardening process. The outer surface of the feeding roller is equipped with a rubber return trough on both ends to prevent rubber from entering the support bearings.
A squeegee knife is also provided to scrape rubber materials on the roller cylinder surface. The knife is fixed on the roller cylinder with adjustable spacing.
Feeding mouth is rotated to open. The feeding rollers feature grease lubrication to achieve optimal effectiveness.
4. Roller cylinder adopts 38CrMoAIA materials. Its surface is processed through a nitriding treatment. The internal surface hardness is HRC65-70. The hard layer depth is 0.5-0.7mm. Along the cylinder surface there is axial path for temperature control circulating water which serves for heating and cooling the cylinder.
5. Reducer features hardened gears with a level 6 transmission accuracy. The reducer is also equipped with a gear pump with a forced lubrication system which has the function of spraying and oil cooling.
