Pin Barrel Cold Feed Rubber Extruder | Rubber Machinery

Application

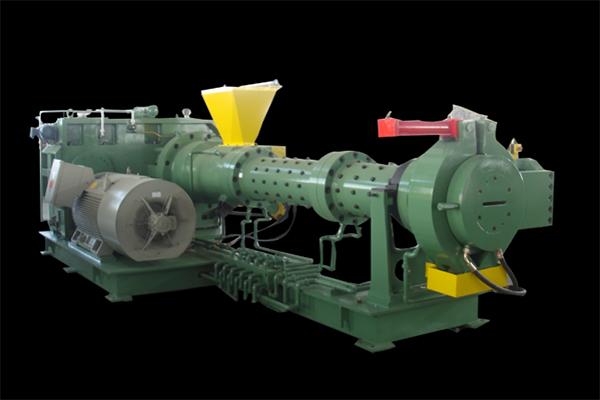

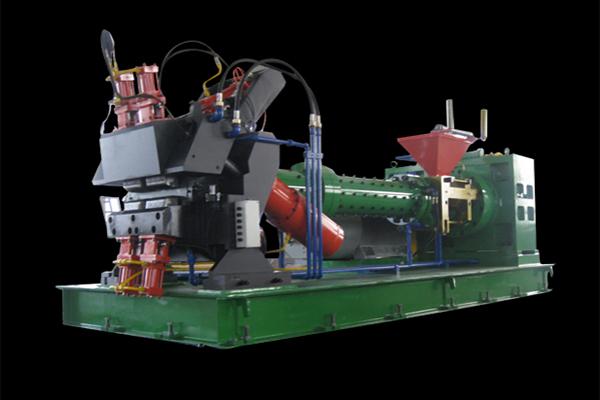

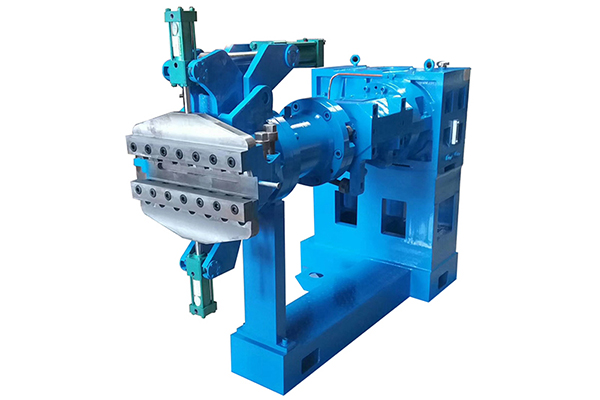

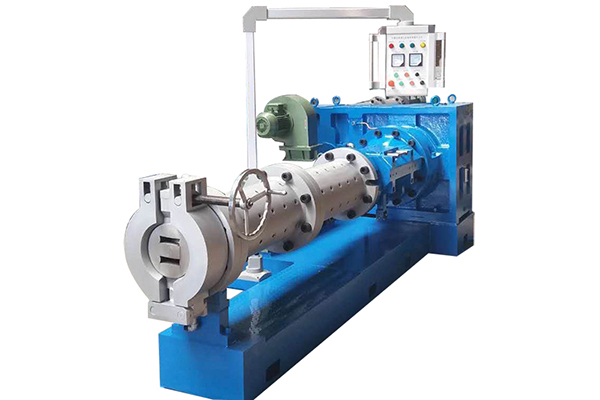

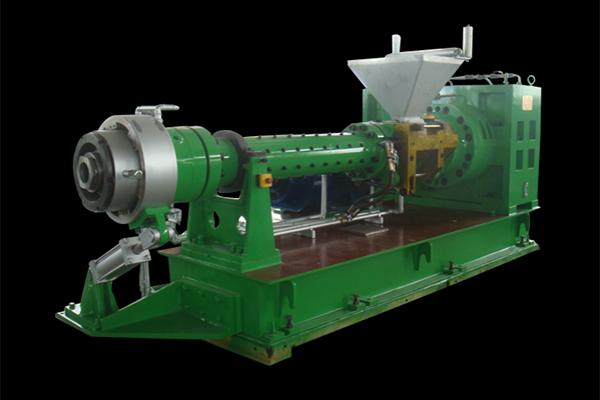

The pin barrel cold feed rubber extruder is rubber processing machinery engineered for the extrusion of various semi-finished rubber products. Some of the items that can be produced using this equipment include, O-rings, seal rings, sealing elements, rubber blankets, rubber strips, and tires and tire components. The equipment is highly versatile and sees use in any number of industrial applications requiring outstanding efficiency and production output.

Product descriptions
1. The screw is made from 38CrMoAIA materials with nitride depth 0.5-0.7mm and hardness HV950-1000.
2. The extruder’s feeding cylinder is composed of a rear body, front bushing and rear bushing. The structure is a jacketed cast iron style.
1. Rear body utilizes cast steel. It contains a cavity where temperature control circulating water can flow through for the cooling of the rear body. In addition, bushing and feeding devices are also placed within the rear body.
2. Bushings are made from 38CrMoAIA materials. The internal surface hardness is HRC65-70 with a hard layer thickness of 0.5-0.7mm
3. The feeding device is composed of a feeding roller, feeding roller cover, bearing support, gear pair, bearing, and squeegee knife.
Feeding roller surface is treated with a hardening process. The outer surface of the feeding roller is equipped with a rubber return trough on both ends to prevent rubber from entering the support bearings.
A squeegee knife is also provided to scrape rubber materials on the roller cylinder surface. The knife is fixed on the roller cylinder with adjustable spacing.
Feeding mouth is rotated to open. The feeding rollers feature grease lubrication to achieve optimal effectiveness.
4. Roller cylinder adopts 38CrMoAIA materials. Its surface is processed through a nitriding treatment. The internal surface hardness is HRC65-70. The hard layer depth is 0.5-0.7mm. Along the cylinder surface there is axial path for temperature control circulating water which serves for heating and cooling the cylinder.
5. Reducer features hardened gears with a level 6 transmission accuracy. The reducer is also equipped with a gear pump with a forced lubrication system which has the function of spraying and oil cooling.

Parameters

Items			XJD-90×14D
Screw diameter	mm		90
Ratio of screw length and diameter L/D			14
Maximum screw rotating speed	r/min		60
Feeder dimension	mm		120×80
No. of rows of dowels			8
No. of pins for each line			6
Extruder motor model			Z4-180-41
Power		Kw	55
No. of circulating hot water zones			3
Total heating power of circulating hot water		Kw	35
Maximum production capacity		Kg/h	360
Dimension		mm	2300×1060×1450
Weight		Kg	3800

Items			XJD-120×14D
Screw diameter	mm		120
Ratio of screw length and diameter L/D			14
Max. screw rotating speed	r/min		50
Feeder dimension	mm		160×100
No. of rows of dowels			10
No. of pins for each line			6
Extruder motor model			Z4-225-11
Power		Kw	110
No. of circulating hot water zones			3
Total heating power of circulating hot water		Kw	35
Max. production capacity		Kg/h	800
Dimension		mm	3250×1250×1650
Weight		Kg	8200

Items			XJD-150×16D
Screw diameter	mm		150
Ratio of screw length and diameter L/D			16
Maximum screw rotating speed	r/min		43
Feeder dimension	mm		200×120
No. of rows of dowels			10
No. of pins for each line			8
Extruder motor model			Z4-250-41
Power		Kw	220
No. of circulating hot water zones			4
Total heating power of circulating hot water		Kw	60
Max. production capacity		Kg/h	1500
Dimension		mm	3800×1590×1700
Weight		Kg	10400

Items			XJD-200×12D
Screw diameter	mm		200
Ratio of screw length and diameter L/D			12
Maximum screw rotating speed	r/min		33
Feeder dimension	mm		260×150
No. of rows of dowels			8
No. of pins for each line			10
Extruder motor model			Z4-280-32
Power		Kw	315
No. of circulating hot water zones			4
Total heating power of circulating hot water		Kw	60
Max. production capacity		Kg/h	2600
Dimension		mm	5030×1950×1850
Weight		Kg	16500

Items			XJD-200×14D
Screw diameter	mm		200
Ratio of screw length and diameter L/D			14
Maximum screw rotating speed	r/min		33
Feeder dimension	mm		260×150
No. of rows of dowels			10
No. of pins for each line			10
Extruder motor model			Z4-315-12
Power		Kw	355
No. of circulating hot water zones			4
Total heating power of circulating hot water		Kw	60
Max. production capacity		Kg/h	2600
Dimension		mm	5900×1950×1850
Weight		Kg	17000

Items			XJD-250×12D
Screw diameter	mm		250
Ratio of screw length and diameter L/D			12
Maximum screw rotating speed	r/min		26
Feeder dimension	mm		340×190
No. of rows of dowels			8
No. of pins for each line			12
Extruder motor model			Z4-315-42
Power		Kw	400
No. of circulating hot water zones			4
Total heating power of circulating hot water		Kw	60
Max. production capacity		Kg/h	3600
Dimension		mm	5400×2400×1920
Weight		Kg	23000

Items			XJD-250×16D
Screw diameter	mm		250
Ratio of screw length and diameter L/D			16
Maximum screw rotating speed	r/min		26
Feeder dimension	mm		340×190
No. of rows of dowels			12
No. of pins for each line			12
Extruder motor model			Z4-355-12
Power		Kw	450
No. of circulating hot water zones			4
Total heating power of circulating hot water		Kw	60
Max. production capacity		Kg/h	3600
Dimension		mm	6077×2400×1920
Weight		Kg	23500
