Applications

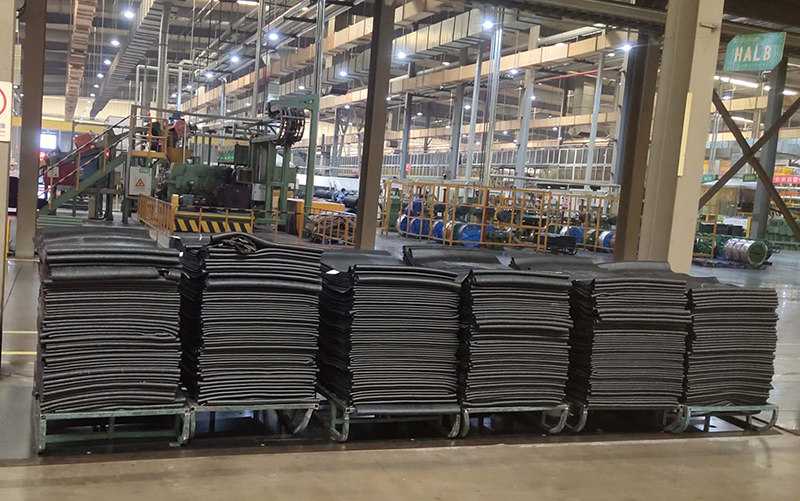

The floor standing batch off cooling machine is a widely applicable piece of drying equipment. The rubber dryer is suitable for use in the production of tires, cables, rubber hoses, belts, etc. The equipment cools down and dries rubber sheet produced in the rubber mixing mill or rubber sheet press.
| Model | XPG-800 |
| Structure | Floor standing type |
| Maximum rubber sheet width (mm) | 800 |
| Rubber sheet thickness (mm) | 4-10 |
| Temperature over ambient environment after sheet cooling(℃) | 15 |
| Linear speed of taking-in conveyor (m/min) | 3-35 |
| Linear speed of sheet-hanging chain (m/min) | 0.117-1.17 |
| Hanging rubber sheet height (m) | 1000-1500 |
| No. of cooling fans (set) | 20 |
| Total power(kw) | 28.8 |
| Model | XPG-900 |
| Structure | Floor standing type |
| Maximum rubber sheet width (mm) | 900 |
| Rubber sheet thickness (mm) | 6-12 |
| Temperature over ambient environment after sheet cooling(℃) | 5 |
| Linear speed of taking-in conveyor (m/min) | 4-40 |
| Linear speed of sheet-hanging chain (m/min) | 4-40 |
| Hanging rubber sheet height (m) | 1400 |
| No. of cooling fans (set) | 18-26 |
| Total power(kw) | 18-34 |

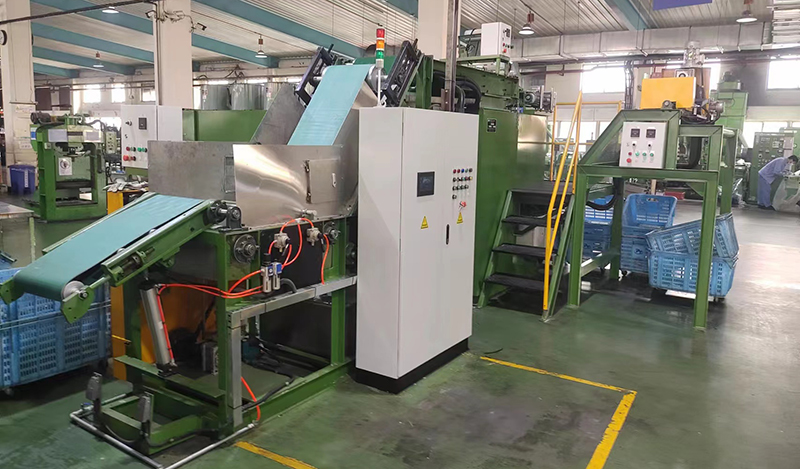

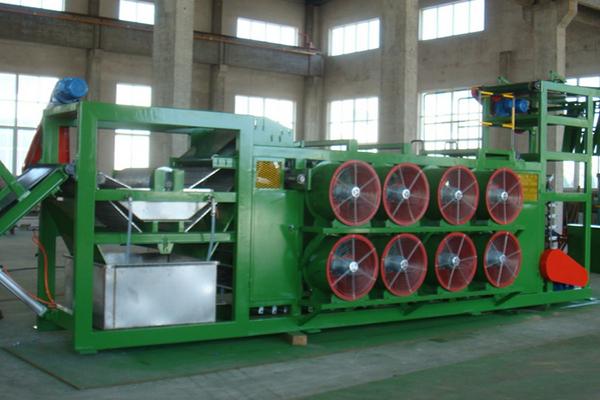

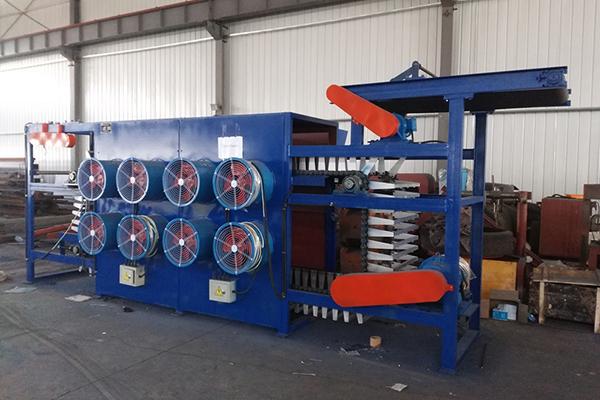

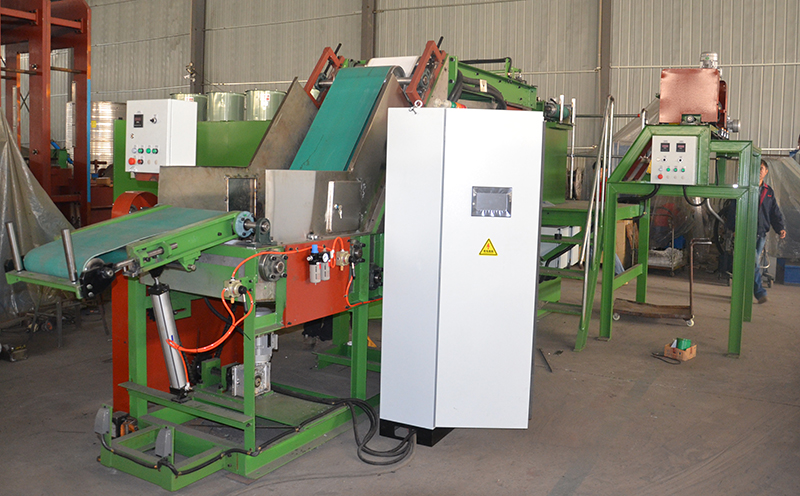

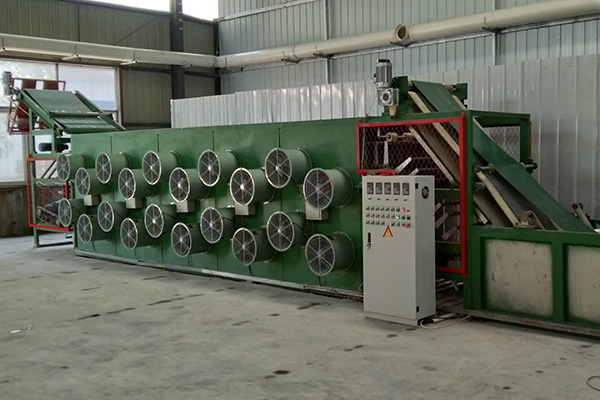

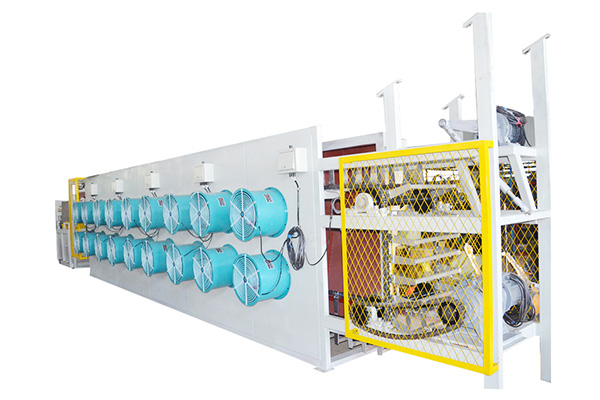

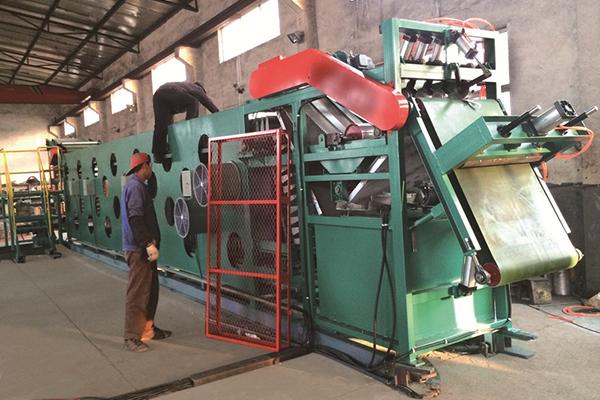

Product description of floor standing rubber batch off cooling machine
1. The verhead rubber batch off cooling machine takes the utilization ratio of workshops into full consideration. A forklift can be used to convey the rubber sheet.
2. Immerse the rubber sheet into the dip tank which contains a solvent then hang the sheets where they will be dried by fan. These procedures guarantee and optimal cooling and drying effect.
3. The whole machine adopts PLC control. Every procedure is driven by variable frequency motor. The speed can be adjusted freely.
4. Upon request, rubber cooling machines can be equipped with an automatic counting device, automatic cutting device and automatic packing device. After automatic sheet packing, it is easier to feed the rubber extruder machine.
5. After feeding, workers can just leave the machine to work by itself.
Our advantages
1. Batch-off coolers have many structural types. We can provide customized machines to meet client demands.
2. Every type of rubber batch-off cooler is multi-functional, easy to use and efficient.
