Applications
The chain belt multilayer rubber sheet cooling machine is a commonly used cooling device in the production of rubber products. The production of tires, cables, rubber hoses and other rubber products is made much easier when the rubber sheets are cooled using this equipment. It cools and dries the rubber sheet produced in rubber mixing mills or rubber sheet presses so that they can be properly stored.
| Model | XPW-600 |
| Maximum rubber sheet width (mm) | 600 |
| Rubber sheet thickness (mm) | 2-12 |
| Temperature over ambient environment after sheet cooling(℃) | 10 |
| Linear speed of taking-in conveyor (m/min) | 3-24 |
| Hanging rubber sheet height (m) | 5 layers of mesh belts |
| Model | XPW-700 |
| Maximum rubber sheet width (mm) | 700 |
| Rubber sheet thickness (mm) | 4-10 |
| Temperature over ambient environment after sheet cooling(℃) | 15 |
| Linear speed of taking-in conveyor (m/min) | 3-35 |
| Hanging rubber sheet height (m) | 5 layers of mesh belts |
| Model | XPW-1000 |
| Maximum rubber sheet width (mm) | 1000 |
| Rubber sheet thickness (mm) | 6-12 |
| Temperature over ambient environment after sheet cooling(℃) | 5 |
| Linear speed of taking-in conveyor (m/min) | 4-40 |
| Hanging rubber sheet height (m) | 7 layers of mesh belts |

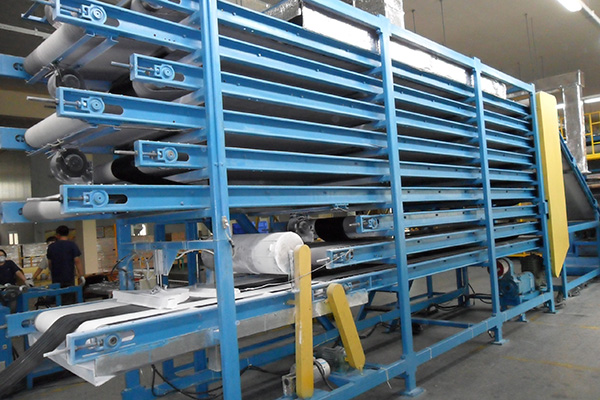

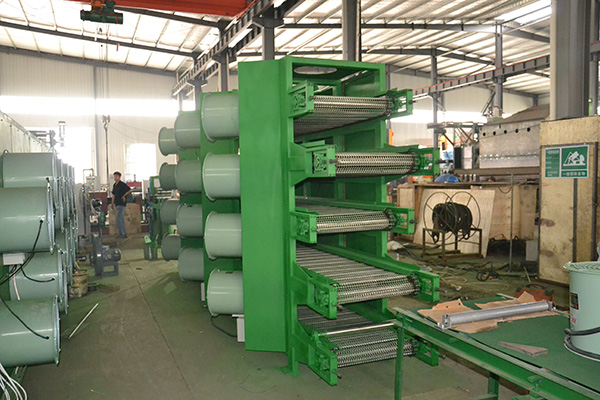

Product description of chain belt multilayer rubber sheet cooling machine
1. Immerse the rubber sheet into the dip tank which contains a solvent then hang the sheets where they will be dried by fan. These procedures guarantee and optimal cooling and drying effect.
2. The whole machine adopts PLC control. Every procedure is driven by variable frequency motor. The speed can be adjusted freely.
3. Cooling fans are high-volume fans with optimal cooling effects.
4. Upon request, rubber cooling machines can be equipped with an automatic counting device, automatic cutting device and automatic packing device. After automatic sheet packing, it is easier to feed the rubber extruder machine.
5. After feeding, workers can just leave the machine to work by itself.
Our advantages
1. Batch-off coolers have many structural types. We can provide customized machines to meet client demands.
2. Every type of rubber batch-off cooler is multi-functional, easy to use and efficient.
