Applications
The U type rubber sheet cooling machine is widely used in rubber and rubber product manufacturing. The equipment is vital in the production of tires, hoses, belts and many other rubber goods. It cools and dries the rubber sheet that has been processed in a rubber mixing mill or rubber sheet press so that it can be properly stored.
| Model | XPG-600 |
| Maximum rubber sheet width (mm) | 600 |
| Rubber sheet thickness (mm) | 4-10 |
| Temperature over ambient environment after sheet cooling(℃) | 10 |
| Linear speed of taking-in conveyor (m/min) | 3-24 |
| Linear speed of sheet-hanging chain (m/min) | 0.82 |
| Hanging rubber sheet height (m) | 1000-1500 |
| No. of cooling fans (set) | 12 |
| Total power(kw) | 13.7 |
| Model | XPG-800 |
| Maximum rubber sheet width (mm) | 800 |
| Rubber sheet thickness (mm) | 4-10 |
| Temperature over ambient environment after sheet cooling(℃) | 15 |
| Linear speed of taking-in conveyor (m/min) | 3-35 |
| Linear speed of sheet-hanging chain (m/min) | 0.117-1.17 |
| Hanging rubber sheet height (m) | 1000-1500 |
| No. of cooling fans (set) | 20 |
| Total power(kw) | 28.8 |
| Model | XPG-900 |
| Maximum rubber sheet width (mm) | 900 |
| Rubber sheet thickness (mm) | 6-12 |
| Temperature over ambient environment after sheet cooling(℃) | 5 |
| Linear speed of taking-in conveyor (m/min) | 4-40 |
| Linear speed of sheet-hanging chain (m/min) | 4-40 |
| Hanging rubber sheet height (m) | 1400 |
| No. of cooling fans (set) | 18-26 |
| Total power(kw) | 18-34 |

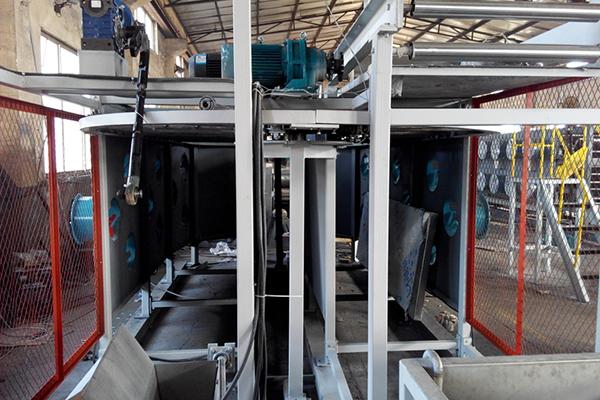

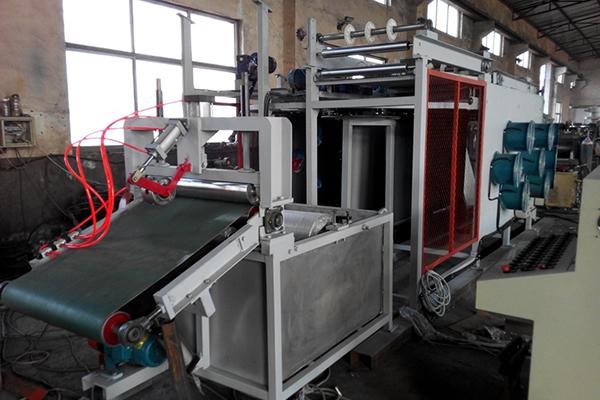

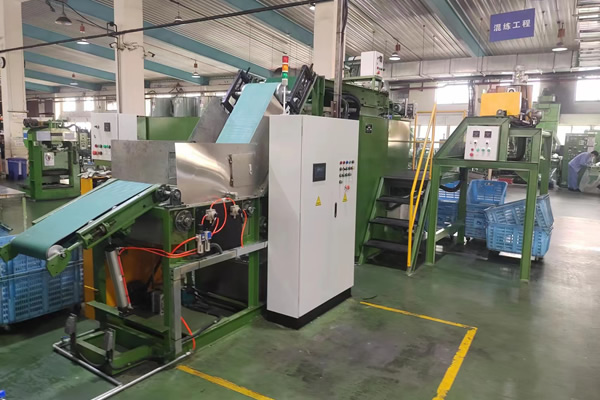

Product description of U Type Rubber Sheet Cooling Machine
1. U type rubber sheet cooling machine occupies a relatively small area. The length is only 3/4 that of the normal batch-off cooler.
2. Immerse the rubber sheet into the dip tank which contains a solvent then hang the sheets where they will be dried by fan. These procedures guarantee and optimal cooling and drying effect.
3. The whole machine adopts PLC control. Every procedure is driven by variable frequency motor. The speed can be adjusted freely.

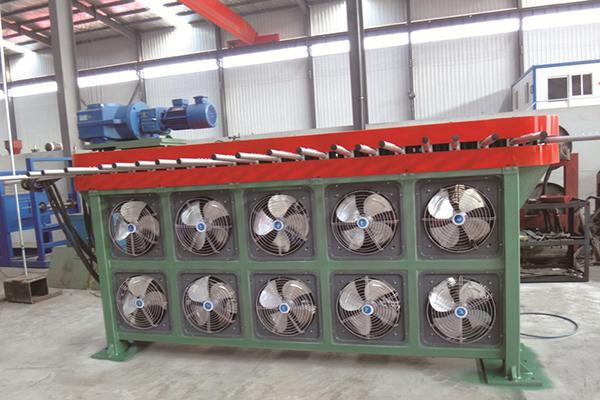

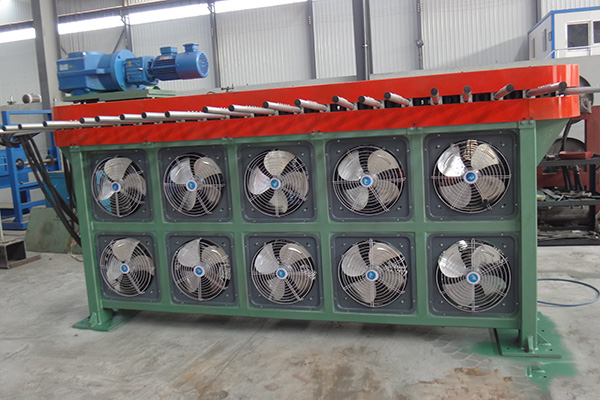

4. Cooling fans are high-volume fans with optimal cooling effects.
5. Upon request, rubber cooling machines can be equipped with an automatic counting device, automatic cutting device and automatic packing device. After automatic sheet packing, it is easier to feed the rubber extruder machine.
6. After feeding, workers can just leave the machine to work by itself.
Our advantages
1. Batch-off coolers have many structural types. We can provide customized machines to meet client demands.
2. Every type of rubber batch-off cooler is multi-functional, easy to use and efficient.
