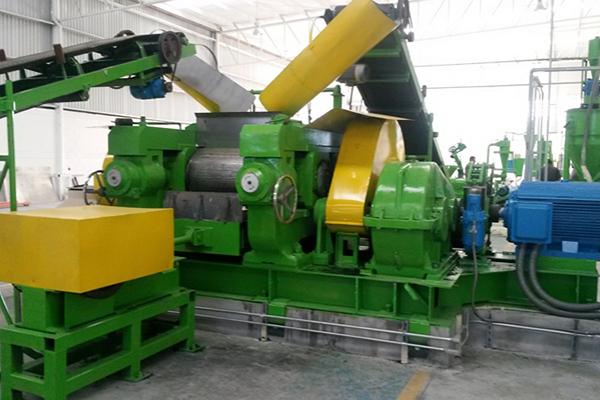

Rubber Cracker Mill

Applications

The rubber cracker mill can be used by waste tire recycling companies to crack rubber chunks into particles so as to separate the rubber from the steel wires within the tire which are used as a lattice support.

Request a Quote
Parameters
Technical parameters XKP-400
Front roller diameter (mm) 400
Rear roller diameter (mm) 400
Roller length (mm) 600
Front roller linear speed (m/min) 17.32
Roller speed ratio 1:1.38
Motor power (kw) 45
Technical parameters XKP-450
Front roller diameter (mm) 450
Rear roller diameter (mm) 450
Roller length (mm) 650
Front roller linear speed (m/min) 23.2
Roller speed ratio 1:1.38
Motor power (kw) 55
Technical parameters XKP-560
Front roller diameter (mm) 510
Rear roller diameter (mm) 560
Roller length (mm) 800
Front roller linear speed (m/min) 25.56
Roller speed ratio 1:1.30
Motor power (kw) 75/90/110/132
Technical parameters XKP-610
Front roller diameter (mm) 560
Rear roller diameter (mm) 610
Roller length (mm) 8001000
Front roller linear speed (m/min) 32.2
Roller speed ratio 1:1.35
Motor power (kw) 132/160
Product description of Rubber Cracker Mill
  • We provide different types of rubber cacker mill according to production.
  • Hardened reducers are grinded and treated by carburizing quenching techniques, which brings high accuracy, wear-resistance and low noise.
  • Labyrinth seal, instead of oil seal, can avoid inconvenience of replacing framework oil seal while maintaining.
  • The rack, gland and base of open mill all adopt welding structure. Surface quality is guaranteed and appearance of the machine is beautiful.
  • The adoption of integrated base avoids severe vibration. In addition, such design does not necessarily need foundation. The machine can be moved freely on foundation surface.
  • Electronic control cabinet is placed on the base which brings convenience for adjustment and installment. Once connected with dynamic power, cooling water and lubrication oil for reducer, the mill can start working.
  • Rubber cracker mill’s roller has two types, cast steel roller and cast iron roller. The latter one is usually recommended, because it is more suitable for broken steel wire tire and convenient for welding and maintenance.
Our advantage
  • Rubber cracker mill is a very important equipment for production line. The adoption of reducer and bearing support fully considers for electricity saving. The adoption of roller materials full considers for maintenance and repairment. The adoption of motor and roller dimension full considers for the production.
  • Our company produces over 20 pieces of rubber crusher with different models every year. We provide customized machines to meet client’s demands.
