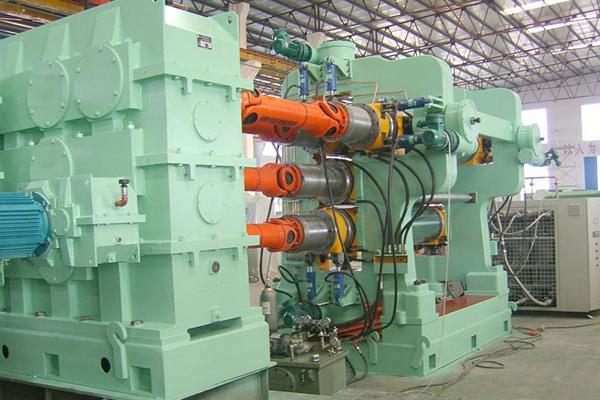

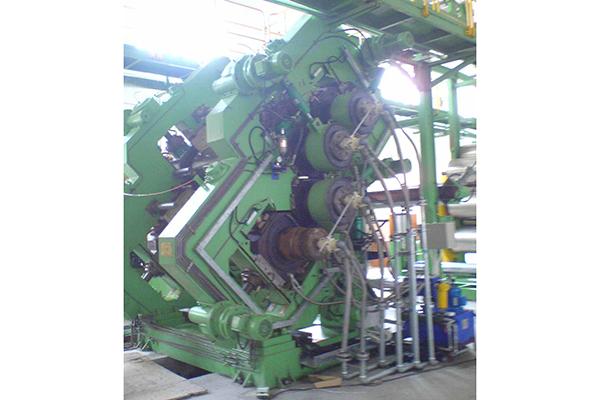

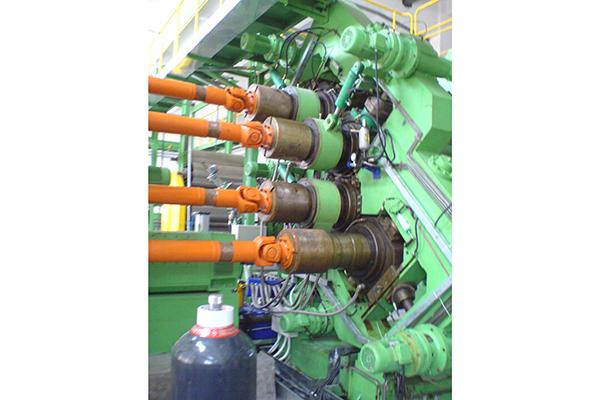

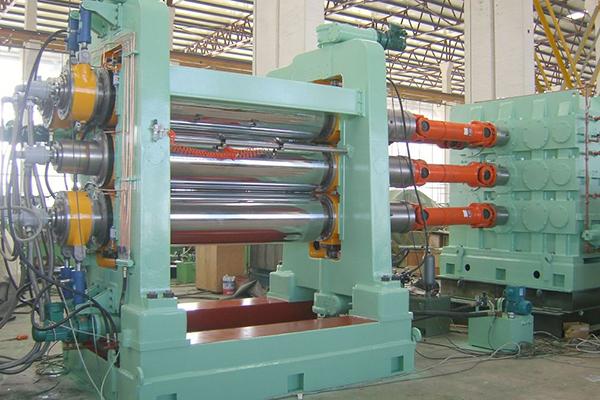

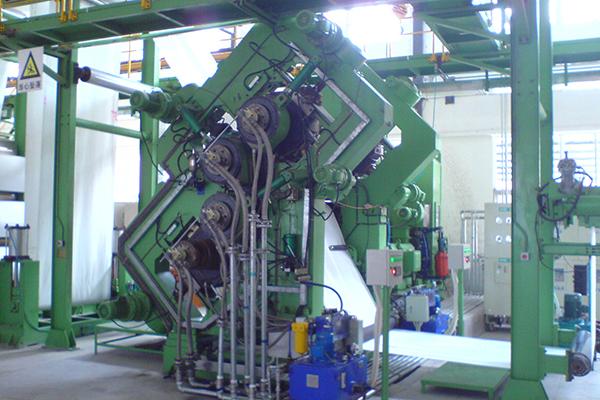

Four Roll Rubber Calendering Machine

Application

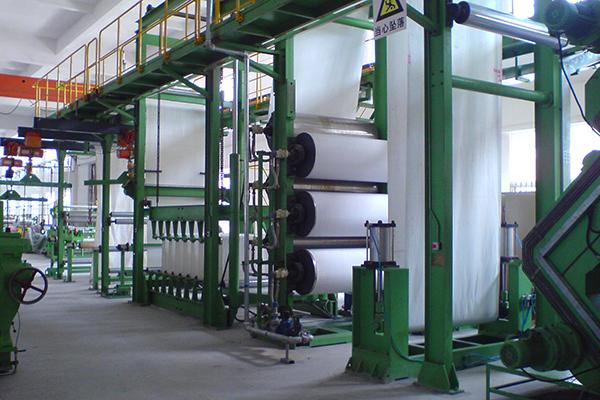

The four roll rubber calendering machine is a specially designed machine used for non-stop rubberizing of nylon cloth sheets and pure rubber sheet calendaring. These machines are extremely popular in the production of tires, cables, hoeses, belts, and rubber soles.

Product description of the Four Roll Rubber Calendering Machine
Four roll rubber calendering machine features Swedish SKF bearings to guarantee calendering accuracy.

Parameters
Model XY-4I 630 XY-4Г1120A XY-4Г1400 XY -4Г1500 XY-4Г1730 XY-4Г2130 XY-4Г2430
Roll diameter mm 230 360 400 450 610 710 810
Working length mm 630 1120 1400 1500 1730 2130 2430
Speed ratio 1:1:1:1 0.73:1:1:0.73 1:1.383:1.383:1 1:1.5:1.5:1 1:1.4:1.4:1 1:1.4:1.4:1.4 1:1:1 1:1.48:1 1:1.5:1.5:1
Middle roll speed r/min 2.1-21 2-20.1 3-26.3 2.5-25 8-50 8-50 2-20
Nip adjustment range mm 0-10 0-10 0-10 0-6 20 0-20 0.5-25
Min. thickness of product mm 0.2 0.2 0.2 0.2 0.15 0.15 ±0.1
Width of product mm 100-500 500-920 1200 1250 1500 1900 2150
Motor power KW 15 55 75 110 160 185 280
Dimensions L mm 3300 6600 6500 6580 7010 9800
W mm 940 1620 1970 2460 4150 4260
H mm 2350 2490 2740 2920 3730 5720
Weight (approx.) T ～4.8 ～14.6 ～18.6 ～33.5 ～62 ～100
