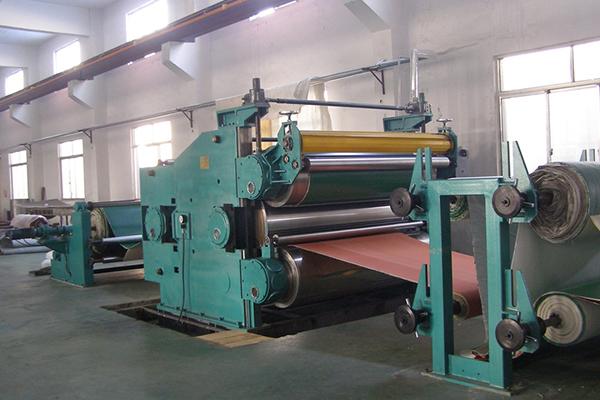

Rotocure Vulcanizing Press
This product has been discontinued and removed from our shelves.
Parameters
| Item | DLG700× 1400-1800 | DLG1000× 2200 | DLG1500× 2000-2500 | DLG2000× 2500-3200 | DLG2500× 3200-4500 | |
| Max.Product Width(mm) | 1200-1600 | 2000 | 1800-2300 | 2300-3000 | 3000-4200 | |
| Product Thickness(mm) | 0.5~5 | 1~8 | 1~10 | 1~10 | 1~10 | |
| Drum Diameter(mm) | 700 | 1000 | 1500 | 2000 | 2500 | |
| Drum Working Width (mm) | 1400-1800 | 2200 | 2350-2750 | 2500-3200 | 3200-4500 | |
| Total Pulling Force of Steel Belt (T) | 38-49 | 90 | 93.6-117 | 120-244 | 500-750 | |
| The Linear Speed of Vulcanizing Drum(m/min) | 0.04-1.12 | 0.06-1.8 | 0.175-3.14 | 0.24-4.7 | 0.24-4.7 | |
| Vapor Pressure( MPa) | ≤0.8 | ≤0.8 | ≤1 | ≤1 | ≤1 | |
| Vulcanizing Temperature(℃) | 140-160 | 140-160 | 160-180 | 160-180 | 160-180 | |
| Main Motor Power(KW) | 4-5.5 | 7.5 | 7.5-11 | 15-22 | 22-37 | |
| Overall Dimensions(mm) | L | 8300 | 10000 | 13500 | 18600 | 23000 |
| W | 4400-4830 | 5900 | 6800 | 5600-7100 | 6800-7900 | |
| H | 2100 | 3900 | 4900 | 5900-6200 | 6600 | |
| Total Weight(T) | ~20-30 | ~42 | ~79 | ~80-120 | ~130-180 | |
