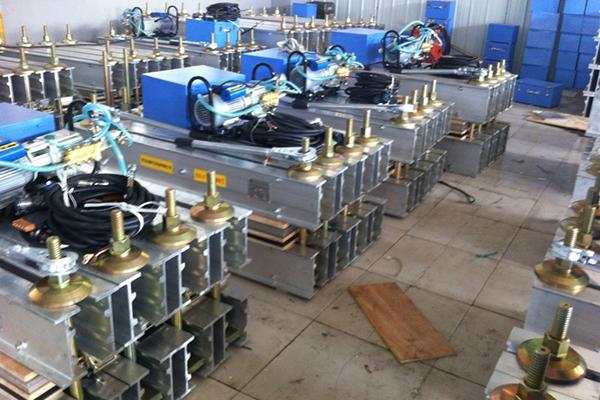

Conveyor Belt Splicing Vulcanizing Press
Applications
The conveyor belt splicing vulcanizing press is widely used in the manufacturing of rubber conveyor belts, transmission belts, leather belts, flat belts, steel cord conveyor belts and other high quality rubber products. The press is designed to connect the two ends of a conveyor belt, forming a continuous ring.
Parameters
| No | Model | Rated Voltage (V) | Frequency (HZ) | Motor Power (KW) | Suitable Belt Width (mm) | Weight (Kg) |
| 1 | 380/660 | 50 | 8.7 | 650 | 480 | |
| 2 | 380/660 | 50 | 10.6 | 800 | 580 | |
| 3 | 380/660 | 50 | 13.5 | 1000 | 750 | |
| 4 | 380/660 | 50 | 15.4 | 1200 | 884 | |
| 5 | 380/660 | 50 | 18.2 | 1400 | 957 | |
| 6 | 380/660 | 50 | 20.1 | 1600 | 1202 | |
| 7 | 380/660 | 50 | 22.1 | 1800 | 1347 | |
| 8 | 380/660 | 50 | 24.1 | 2000 | 1485 | |
| 9 | 380/660 | 50 | 27.1 | 2200 | 1546 |
