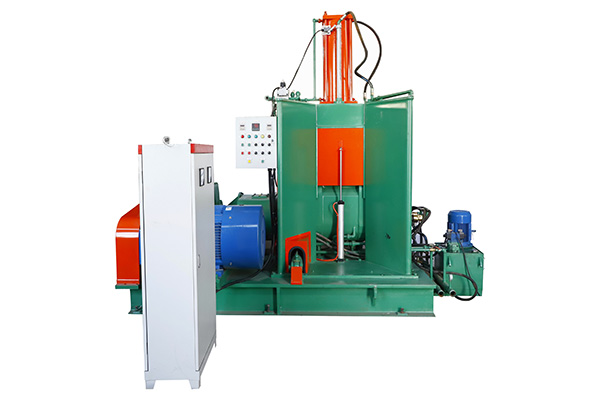

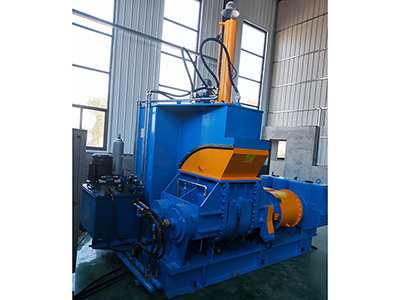

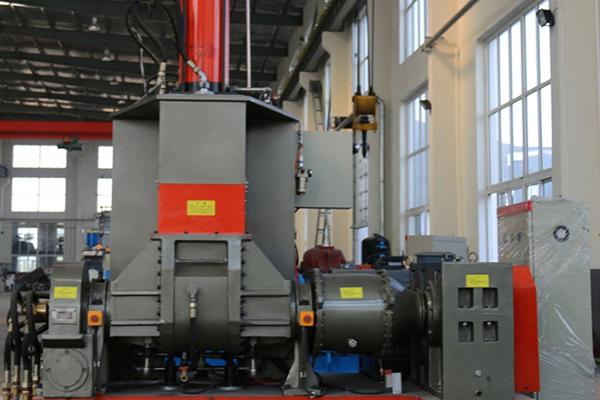

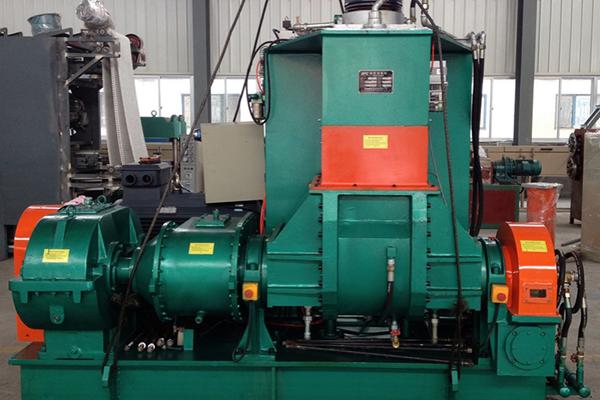

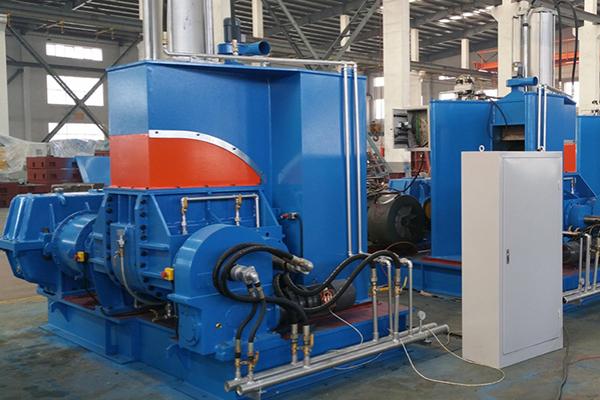

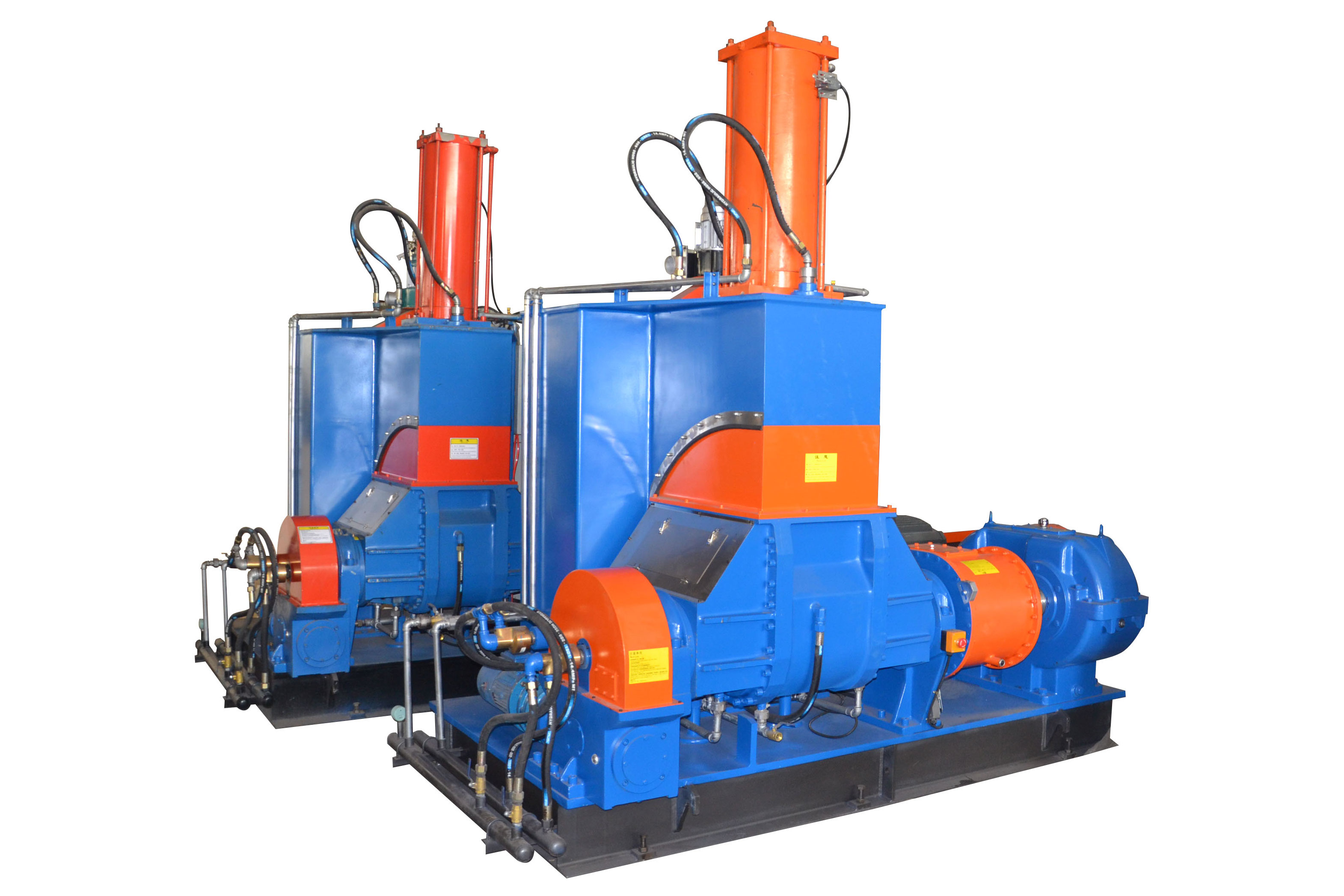

Pressurized Rubber Kneader Machine | Rubber Machinery Manufacturer

Applications
The pressurized rubber kneader machine is engineered for use in rubber and rubber product factories. The kneader helps to process rubber for the production of tires, cables, rubber hoses, belts, shoes, and seals. The machinery is also versatile in that it can be used to mix oil paints, dyes, ceramics, medicines, filmstrips and other products of similar makeup.

Product parameters

Model				X(S)N-3
Total volume of internal mixing		L		3
Motor power		kW		7.5
Tilt angle		°		140
Rotor speed (front/rear)		r/min		36/30
Compressed air working pressure		MPa		0.5~0.8
Compressed air flow		m3/min		≥0.9
Cooling water pressure		MPa		0.3~0.4
Vapor pressure		MPa		0.5~0.8
Dimension	Length		㎜	1638
	Width		㎜	906
	Height		㎜	1720

Model				X(S)N-20
Total volume of internal mixing		L		20
Motor power		kW		30
Tilt angle		°		140
Rotor speed (front/rear)		r/min		36/30
Compressed air working pressure		MPa		0.5~0.8
Compressed air flow		m3/min		≥0.9
Cooling water pressure		MPa		0.3~0.4
Vapor pressure		MPa		0.5~0.8
Dimensions	L		㎜	2630
	W		㎜	1520
	H		㎜	3300

Model				X(S)N-35
Total volume of internal mixing		L		35
Motor power		kW		55
Tilt angle		°		140
Rotor speed (front/rear)		r/min		36/30
Compressed air working pressure		MPa		0.5~0.8
Compressed air flow		m3/min		≥0.9
Cooling water pressure		MPa		0.3~0.4
Vapor pressure		MPa		0.5~0.8
Dimensions	L		㎜	3200
	W		㎜	1900
	H		㎜	2950

Model				X(S)N-55
Total volume of internal mixing		L		55
Motor power		kW		75
Tilt angle		°		140
Rotor speed (front/rear)		r/min		36/30
Compressed air working pressure		MPa		0.6~0.8
Compressed air flow		m3/min		≥1.0
Cooling water pressure		MPa		0.3~0.4
Vapor pressure		MPa		0.5~0.8
Dimensions	L		㎜	3230
	W		㎜	1927
	H		㎜	2958

Model				X(S)N-75
Total volume of internal mixing		L		75
Motor power		kW		110
Tilt angle		°		140
Rotor speed(front/rear)		r/min		36/30
Compressed air working pressure		MPa		0.6~0.8
Compressed air flow		m3/min		≥1.0
Cooling water pressure		MPa		0.3~0.4
Vapor pressure		MPa		0.5~0.8
Dimensions	L		㎜	3325
	W		㎜	2615
	H		㎜	3105

Model				X(S)N-110
Total volume of internal mixing		L		110
Motor power		kW		185
Tilt angle		°		140
Rotor speed(front/rear)		r/min		30/24.5
Compressed air working pressure		MPa		0.6~0.8
Compressed air flow		m3/min		≥1.5
Cooling water pressure		MPa		0.3~0.4
Vapor pressure		MPa		0.5~0.8
Dimensions	L		㎜	4075
	W		㎜	2712
	H		㎜	3580

Description of products
1. Mixing chamber: constructed from premium alloy steel for welding→annealing→finish machining→surface hard chrome plating→polishing treated using 400 grit abrasive cloth. Chrome layer thickness is 0.10mm with hardness of HV900~1000.

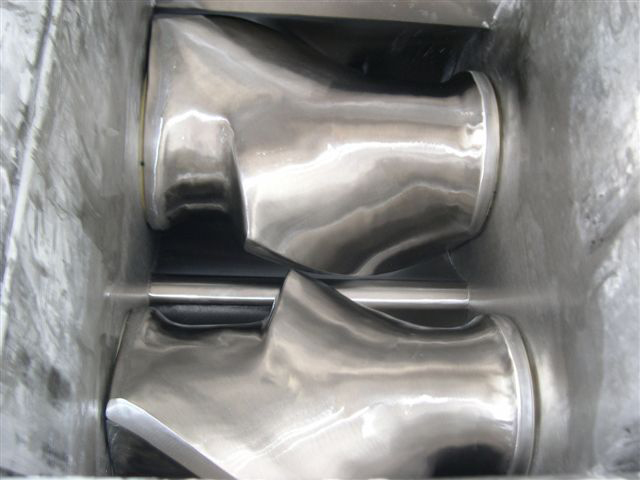

2. Front and rear rotor: rotor is made of cast steel with manganese and other alloy materials→the head of rotor is welded with wear-resistant hard alloy with a thickness of 3~5mm→processing and polishing treatment→full body is treated by hard chrome plating with a thickness of 0.10mm.
3. Internal mixing seal system: labyrinth seal system to prevent leakage of powder and feed materials.

Our advantage
1. Pressurized kneader machines are designed and manufactured according to China Chemical Industrial Standards HG/T 3798-2005 & HG/T 3799-2005 and manufacturer enterprise standards.
2. Inspections are performed according to China National Standards GB/T 1182-2008 & GB/T 1184-1996.
3. X(S)N-35, X(S)N-55 and X(S)N-75 are three widely used kneading machine types, on average selling 60 pieces each year.
