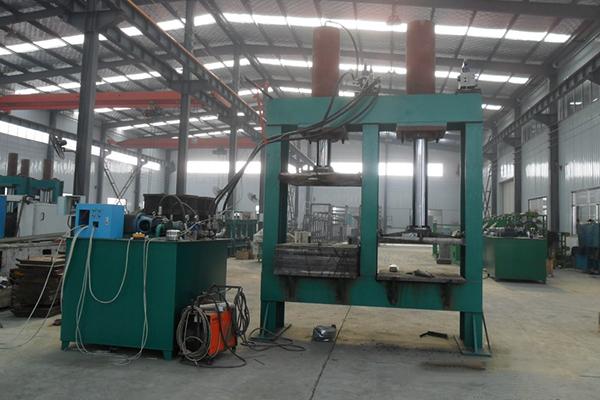

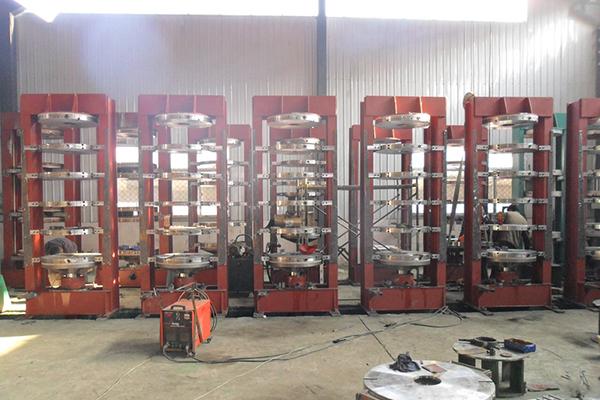

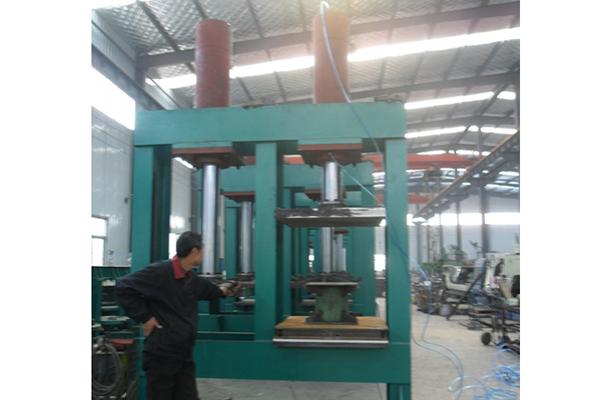

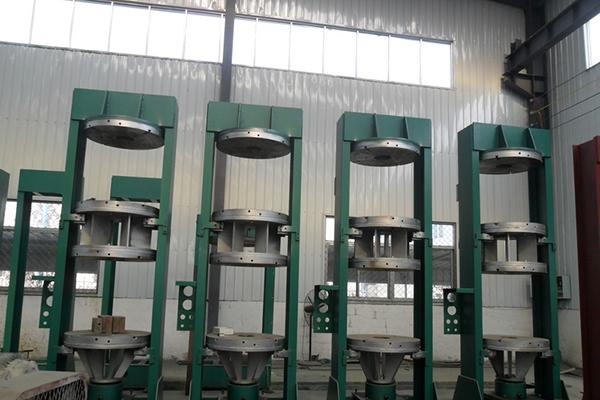

Rubber Tyre Vulcanizing Press

A rubber tire vulcanizing press is used for vulcanizing a green tire in order to achieve the final shape. The vulcanizing press is often used in the production of cycle tires, tractor tires, agricultural tires, motorcycle tires, light truck tires, engineering tires, special-purpose tires for mine, complete steel radial tires, semi-steel tires, renovated tires and other tire varieties.

Technical parameters XNL-650
Nominal clamp force (MN) 0.25
Maximum working spacing (mm) 760
No. of working layers 1
Plunger stroke (mm) 300
Main motor power (kw) 2.2
Technical parameters XNL-1000
Nominal clamp force (MN) 0.6
Maximum working spacing (mm) 800
No. of working layers 1
Plunger stroke (mm) 500
Main motor power (kw) 4
Technical parameters XNL-2000
Nominal clamp force (MN) 2
Maximum working spacing (mm) 1200
No. of working layers 1
Plunger stroke (mm) 800
Main motor power (kw) 5.5
