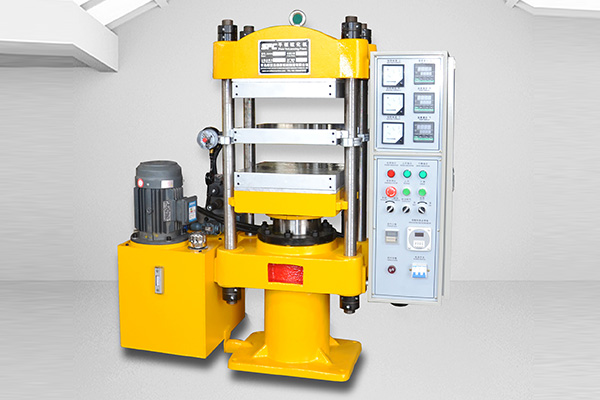

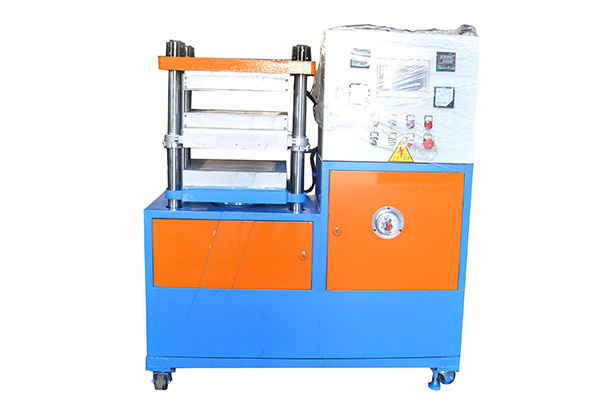

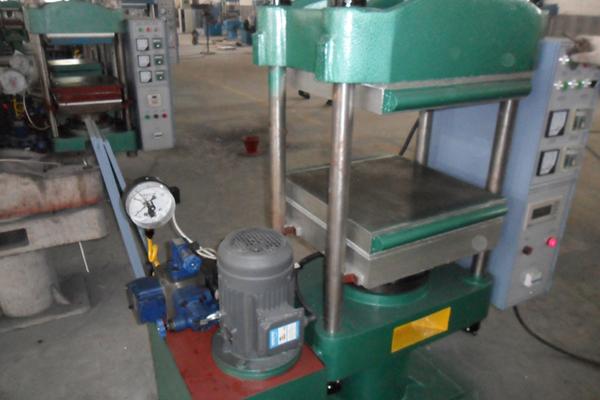

Lab Vulcanizing Press
Applications
Lab vulcanizing presses are used to vulcanize rubber sheets that are needed for experimentation into sheets. They are widely used in rubber and rubber product fields, serving as lab equipment in tire factories, cable factories, rubber hose and belt factories, rubber shoe factories, sealing element factories, calcium-resin factories and more.
Product parameters
| Model Technical parameters |
|
| Nominal clamp force MN | 0.25 |
| Hot plate spacing mm | 125 |
| No. of hot plate layers | 2 |
| Hot plate pressure per unit area MPa | 2.78 |
| Plunger stroke mm | 125 |
| Heating method | Electricity |
| Main motor power KW | 2.2 |
| Dimension L×W×H mm | 1200×580×1100 |
| Machine weight kg | 600 |
| Structural type | Pillar type |

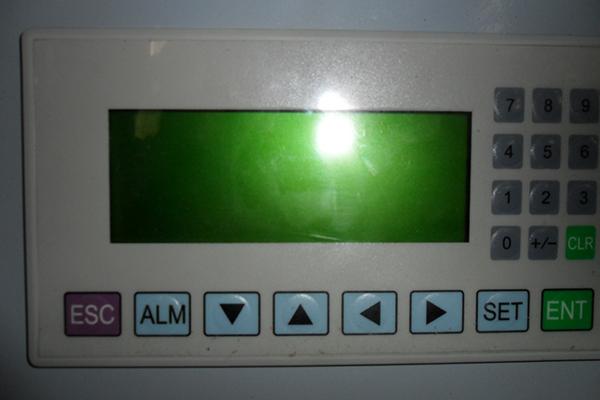

| Control type | Automatic |
Product description of Lab Vulcanizing Press
- Fully automatic control system: The lab vulcanizing press features an automatic exhaust. The exhaust time, duration and distance are all freely and easily adjusted, and the automatic pressure compensation compensates for pressure decreases occurring during vulcanization. Operation of the press is easy.

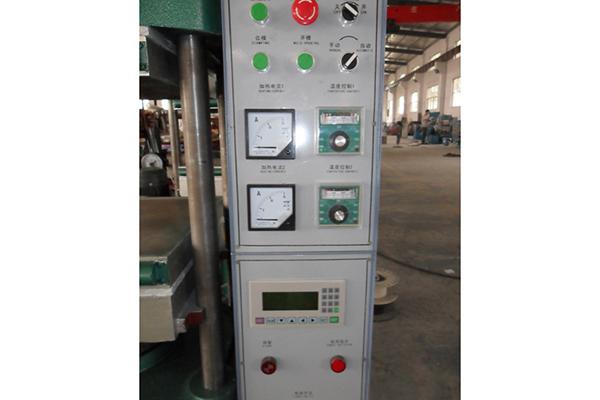

- The digital thermometer is easy to monitor.
- We can provide sampling molds for clients upon request.
