Application

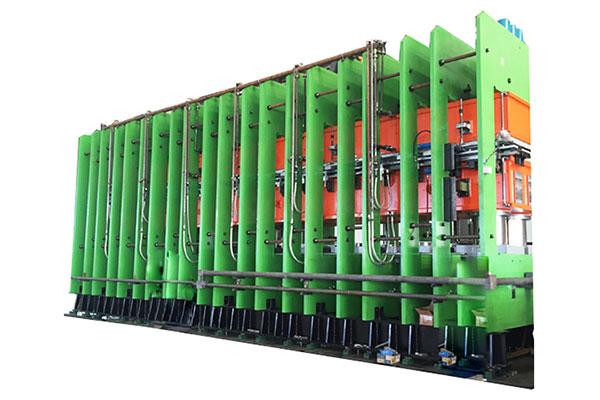

The fabric core conveyor belt vulcanizing press is designed and manufactured in order to produce rubber conveyor belts, transmission belts, leather belts, flat belts, rubber belts, sidewall belts, and other rubber products. The vulcanization process results in highly durable and strong rubber products.
| Category | Unit | XLB-1800X 12000 | XLB-1800X 10000 | XLB-1600X 10000 | XLB-1600X 8500 | XLB-1400X 10000 | XLB-1400X 5700 |
| Hot plate dimension | mm | 1800*12000 | 1800*10000 | 1600*10000 | 1600*8500 | 1400*10000 | 1400*5700 |
| Nominal total pressure | mn | 74.00 | 72.00 | 56.00 | 47.60 | 49.00 | 25.00 |
| Unit pressure of hot plate | mpa | 3.4 | 4.0 | 3.5 | 3.5 | 3.5 | 3.13 |
| Plunger diameter | mm | 500 | 500 | 450 | 500 | 450 | 360 |
| No. of plunger | set | 18 | 18 | 18 | 14 | 18 | 10 |
| Plunger stroke | mm | 400 | 300 | 400 | 300 | 300 | 400 |
| Clamping force | mn | 1.20 | 1.50 | 1.20 | 0.6 | 0.90 | 0.72 |
| Tensile stress | mn | 1.10 | 1.2 | 1.10 | 0.5 | 0.80 | 0.60 |
| Vapor pressure | mpa | 0.63 | 0.6-0.8 | 0.63 | 0.63 | 0.63 | 0.63 |
| Cooling water pressure | mpa | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
| Control method | PLC | PLC | PLC | PLC | PLC | PLC |
