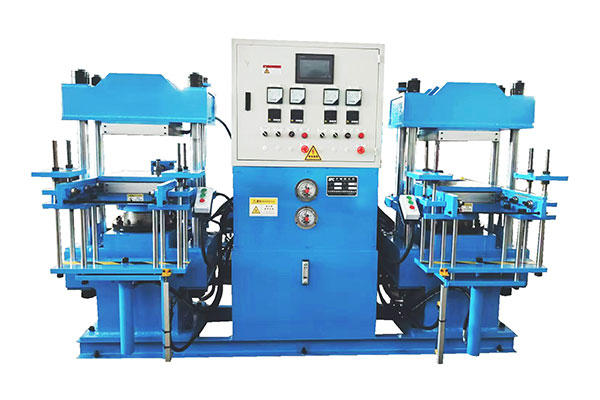

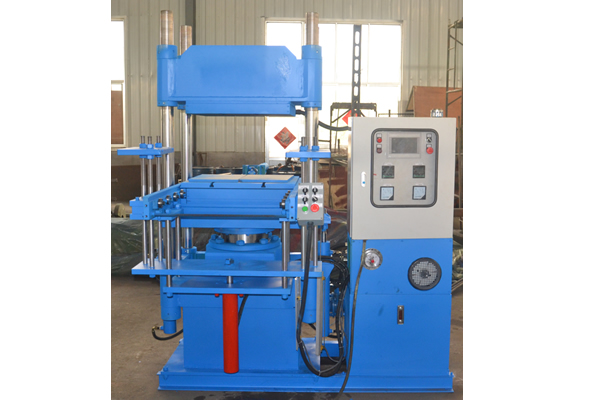

Column Plate Rubber Vulcanizing Press

Applications
The column plate rubber vulcanizing press is designed and manufactured to manufacture a number of different rubber and silicone based products. These products include O-rings, sealing elements, rubber strips, EVA foam slippers, rubber floor tiles, etc.

Parameters
Model Technical parameters XLB-350×350×2
Nominal clamp force (MN) 0.25
Hot plate spacing (mm) 125
Hot plate layers 2
Hot plate pressure per unit area (MPa) 2.04
Plunger stroke (mm) 250
Heating methods Electricity, oil and gas
Main motor power (kw) 2.2
Dimension L×W×H (mm) 1200×580×1200
Total weight (kg) 1200
Model Technical parameters XLB-400×400×2
Nominal clamp force (MN) 0.50
Hot plate spacing (mm) 125
Hot plate layers 2
Hot plate pressure per unit area (MPa) 3.13
Plunger stroke (mm) 250
Heating methods Electricity, oil and gas
Main motor power (kw) 2.2
Dimension L×W×H (mm) 1400×500×1400
Total weight (kg) 1500
Model Technical parameters XLB-600×600×2/4
Nominal clamp force (MN) 1
Hot plate spacing (mm) 125
Hot plate layers 2/4
Hot plate pressure per unit area (MPa) 2.78
Plunger stroke (mm) 250/500
Heating methods Electricity, oil
and gas
Main motor power (kw) 2.2
Dimension L×W×H (mm) 1880×820×1680×2150
Total weight (kg) 2500/3100
Model Technical parameters XLB-800×800×2
Nominal clamp force (MN) 6.00
Hot plate spacing (mm) 300
Hot plate layers 2
Hot plate pressure per unit area (MPa) 9.4
Plunger stroke (mm) 600
Heating methods Electricity, oil and gas
Main motor power (kw) 26
Dimension L×W×H (mm) 1300×1000×3000
Total weight (kg) 17000

Product description
1. Easy assembly. The wires between the main engine, electronic control cabinet and hydraulic pressure station are all connected before delivery. Users only need to connect the wire between the workshop and electronic control cabinet and fill the hydraulic pressure station with hydraulic oil, the machine is then ready to operate.
2. Custom service. The hot plate dimension, layers, pressures and other parameters of the vulcanizing machine can be customized to meet client demands.
3. This series of vulcanizing machine can be equipped with PLC automatic control system for automatic exhaust operation. The exhaust period, interval and times can all be freely adjusted. The machine also has the function of automatic pressure filling to compensate the decrease of the pressure during vulcanization.

Our advantages
1. Column plate rubber vulcanizing press is one of the earliest plate vulcanizing machines that Qingdao Shun Cheong Machine Co. ever designed and brought to market. The current frame plate and C plate nonstandard vulcanizing presses are all designed and manufactured based on the original design of the column plate rubber vulcanizing press.
2. The plate vulcanizing presses with capacities below 100 tons manufactured in our company, if not specially requested by clients, are all column plate types.
3. We sell XLB-350×350, XLB-400×400 and XLB-600×600 vulcanizing press models. Over 40 pieces of these three types of vulcanizing machines are produced monthly. Over 30% are sold internationally every year.
