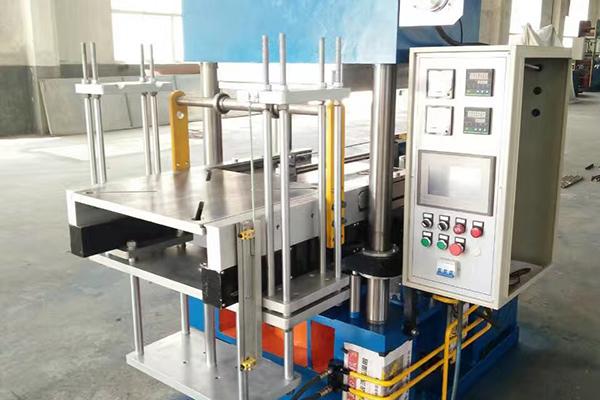

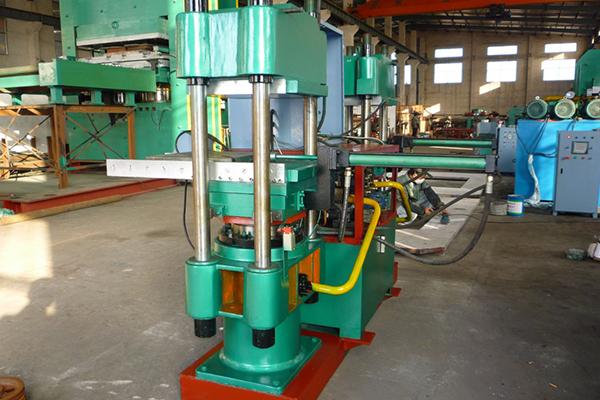

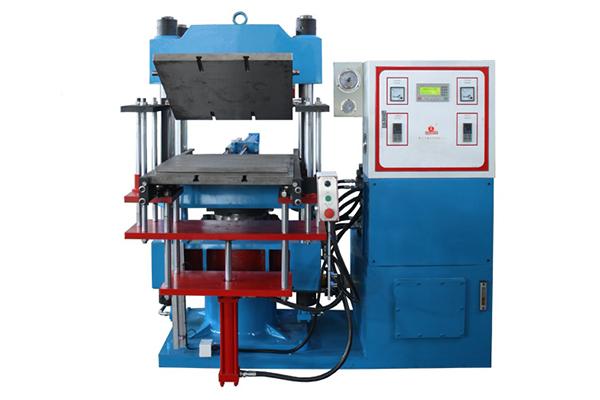

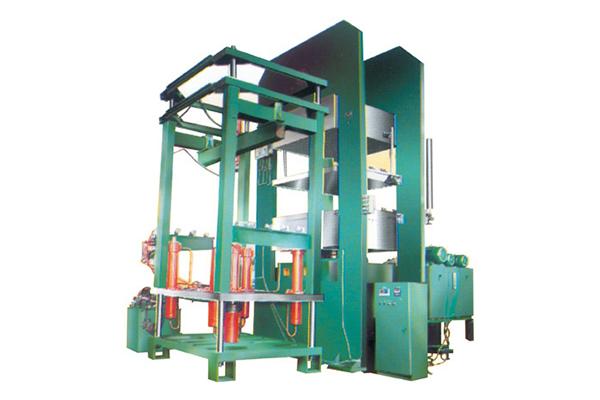

Full Automatic Rubber Vulcanizing Press
Request a Quote
Applications
Fully automatic rubber vulcanizing presses are applicable for various rubber and silicone based products. They feature a wide application range, including the production of O-type rings, seal rings, sealing elements, rubber blanket, rubber strips, waterstops, rubber pads, rubber hoses, rubber belts, automotive accessories, household electric accessories, electric wire and cables, railway equipment, freezer accessories, tires, inner tubes, blankets, cycle tires, rubber tires, tractor tires, agricultural tires, motorcycle tires, light truck tires, engineering tires, special-purpose tires for mines, complete steel radial tires, semi-steel car tires, renovated tires, conveyor belts, transmission belts, leather belts, flat belts, rubber belts, sidewall belts, steel cord conveyor belts and other applications.
Product parameters
| Model Technical parameters |
XLB350×350×2 |
| Nominal clamp force (MN) |
0.25 |
| Hot plate spacing (mm) |
125 |
| Hot plate layers |
2 |
| Hot plate pressure per unit area (MPa) |
2.04 |
| Plunger stroke (mm) |
250 |
| Heating methods |
Electricity and gas |
| Main motor power (Kw) |
2.2 |
| Dimension L×W×H (mm) |
1200*580*1200 |
| Total weight (kg) |
1200 |
| Model Technical parameters |
XLB400×400×2 |
| Nominal clamp force (MN) |
0.50 |
| Hot plate spacing (mm) |
125 |
| Hot plate layers |
2 |
| Hot plate pressure per unit area (MPa) |
3.13 |
| Plunger stroke (mm) |
250 |
| Heating methods |
Electricity and gas |
| Main motor power (Kw) |
2.2 |
| Dimension L×W×H (mm) |
1400*500*1400 |
| Total weight kg |
1500 |
| Model Technical parameters |
XLB600×600×2/4 |
| Nominal clamp force (MN) |
1.00 |
| Hot plate spacing (mm) |
125 |
| Hot plate layers |
2/4 |
| Hot plate pressure per unit area (MPa) |
2.78 |
| Plunger stroke (mm) |
250/500 |
| Heating methods |
Electricity and gas |
| Main motor power (Kw) |
2.2 |
| Dimension L×W×H (mm) |
1880*820*1680*2150 |
| Total weight kg |
2500/3100 |
| Model Technical parameters |
XLB750×850×4 |
| Nominal clamp force (MN) |
1.60 |
| Hot plate spacing (mm) |
125 |
| Hot plate layers |
4 |
| Hot plate pressure per unit area (MPa) |
2.51 |
| Plunger stroke (mm) |
500 |
| Heating methods |
Electricity and gas |
| Main motor power (Kw) |
3 |
| Dimension L×W×H (mm) |
1730*930*2460 |
| Total weight kg |
7500 |
| Model Technical parameters |
XLB900×900×2 |
| Nominal clamp force (MN) |
2.5 |
| Hot plate spacing (mm) |
200 |
| Hot plate layers |
2 |
| Hot plate pressure per unit area (MPa) |
3.09 |
| Plunger stroke (mm) |
400 |
| Heating methods |
Electricity and gas |
| Main motor power (Kw) |
4 |
| Dimension L×W×H (mm) |
2345*960*1385 |
| Total weight kg |
6500 |
| Model Technical parameters |
XLB1200×1200 |
| Nominal clamp force (MN) |
3.15 |
| Hot plate spacing (mm) |
300 |
| Hot plate layers |
1 |
| Hot plate pressure per unit area (MPa) |
2.19 |
| Plunger stroke (mm) |
300 |
| Heating methods |
Electricity and gas |
| Main motor power (Kw) |
4 |
| Dimension L×W×H (mm) |
2800*1300*300 |
| Total weight kg |
8500 |
Product description
- Fully automatic vulcanizing presses are improved based on the previous designs of normal vulcanizing presses. We have increased the following functions, including automatic pushout of vulcanized mold→overturn and opening of the upper mold→middle mold ejection.
- The wires between the main engine, electronic control cabinet and hydraulic pressure station are all connected before delivery. Users only need to connect the wire between workshop and electronic control cabinet and fill the hydraulic pressure station with hydraulic oil, the machine is then ready to work.
- The hot plate dimension, layers, pressures and other parameters of vulcanizing press can be customized to meet client demands.
- Adoption of fully automatic PLC control greatly increases operating efficiency.
Our advantage
- Fully automatic rubber vulcanizing presses simplify the vulcanization process, freeing up time and costs.
- Now, the full automatic rubber vulcanizing presses manufactured by our company are mainly exported. The majority of exported machines are below 2.00MN type vulcanizing presses.
