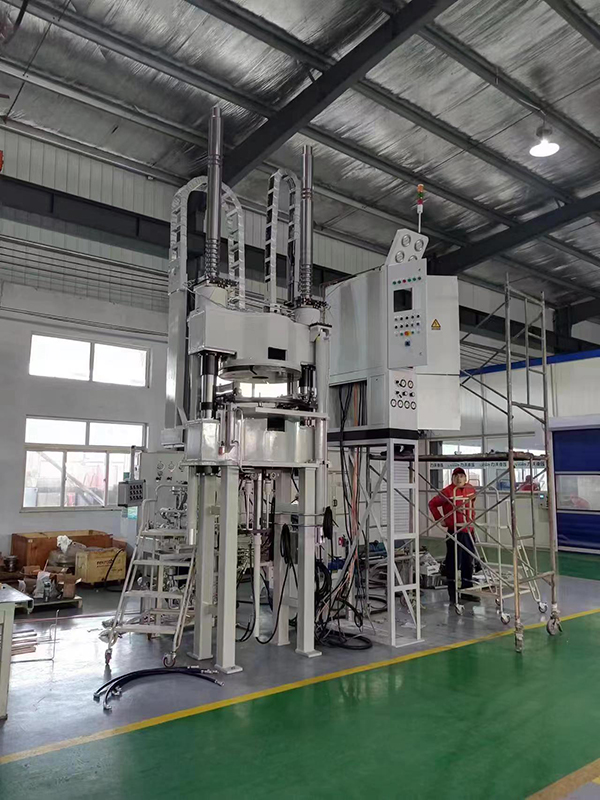

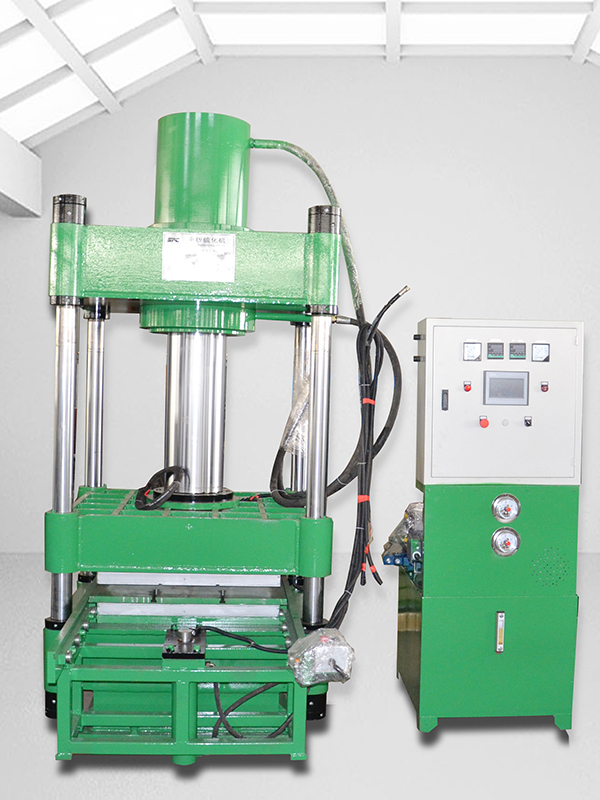

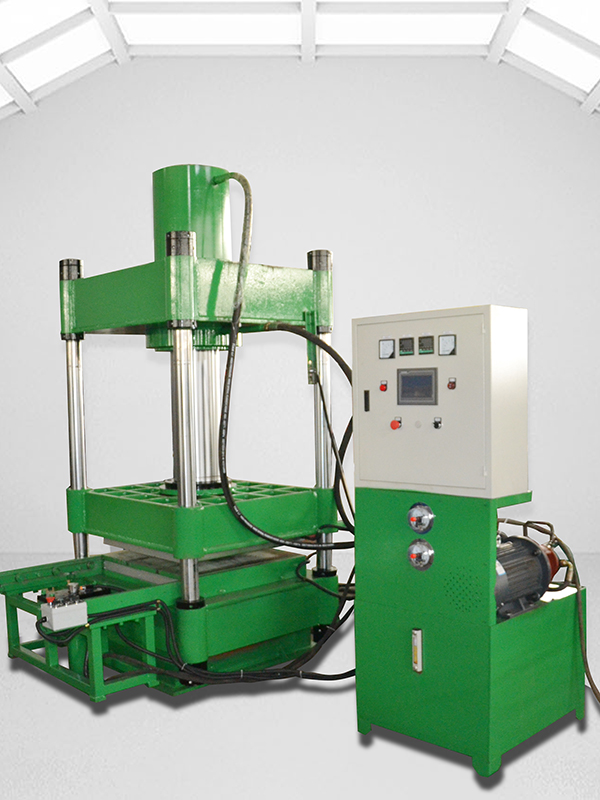

Solid Tire Vulcanizing Machine

Request a Quote

This solid tire vulcanizing machine is mainly used for manufacturing solid tires for trolleys and special vehicles. This rubber tire vulcanizing machine is featured by automatic mold clamping, automatic gas discharging, automatic pressure compensation, vulcanization timer, automatic constant temperature, timer alarm and automatic mold opening.

Specifications

XLB-D 800×800×1/2.00MN

  • Nominal clamping force: 2.00MN
  • Heating plate size: 800×800× thickness 56mm
  • Spacing: 850×850mm
  • No. of heating plate: 2 pieces
  • Working layer: 1 layer
  • Working pressure: 31.25kg/cm²
  • No. of main cylinder: 1 set
  • Push-pull mode: automatic hydraulic push-pull
  • Max. system pressure: 20Mpa
  • Control: PLC automatic control

XLB-D1200X1200X4/8.00MN

  • Nominal clamping force: 8.00MN
  • Frame number: 2 pieces
  • Heating plate size: 1200×1200×76mm
  • No. of heating plate: 5 pieces
  • Working layer: 4 layers
  • Max. working temperature of heating plate: 200℃
  • No. of main cylinder: 1 set
  • Heating mode: electrical heating
  • Mold ejection: hydraulic ejection (auxiliary lifting device)
  • Machine dimensions: 2070×2800×6200mm
Features
  • Automation 4.0 Design
    Our tire vulcanizing machine includes advanced automation features that make processes smoother, such as fast lifting, slow mold closing, automatic air release, pressure adjustment, and temperature control. It also allows for automatic mold opening and tire ejection, simplifying the operation and boosting efficiency
  • High Efficiency
    The multi-layer design allows vulcanization at low temperatures and high pressure at the same time, helping to increase productivity through centralized control
  • Reliable and Durable
    Designed for continuous 24-hour operation, this vulcanizing press ensures efficient performance even in high-demand production environments
