Applications

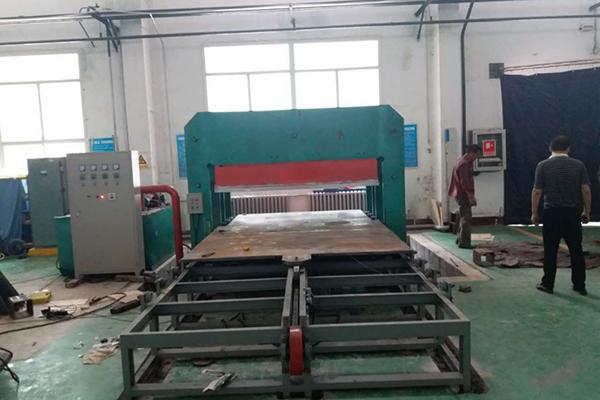

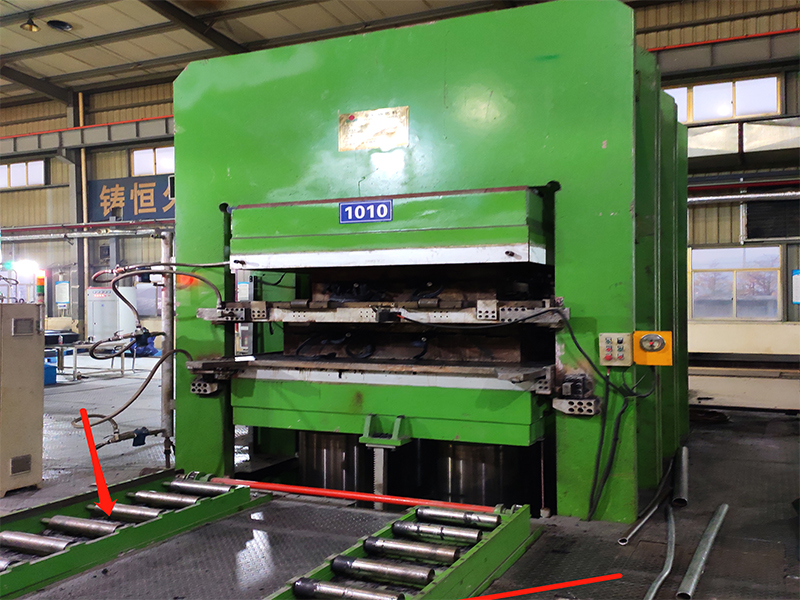

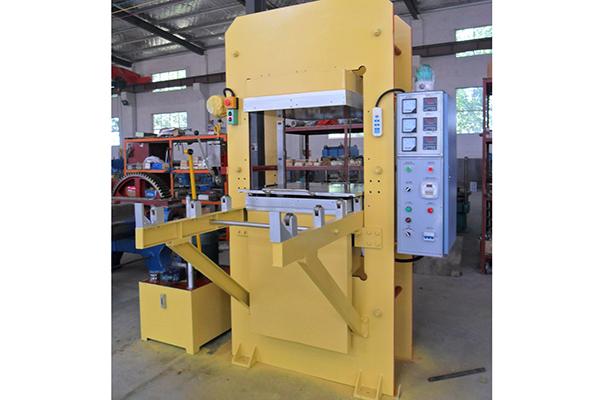

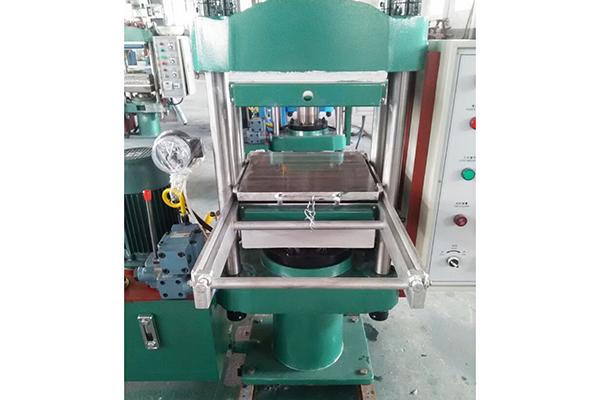

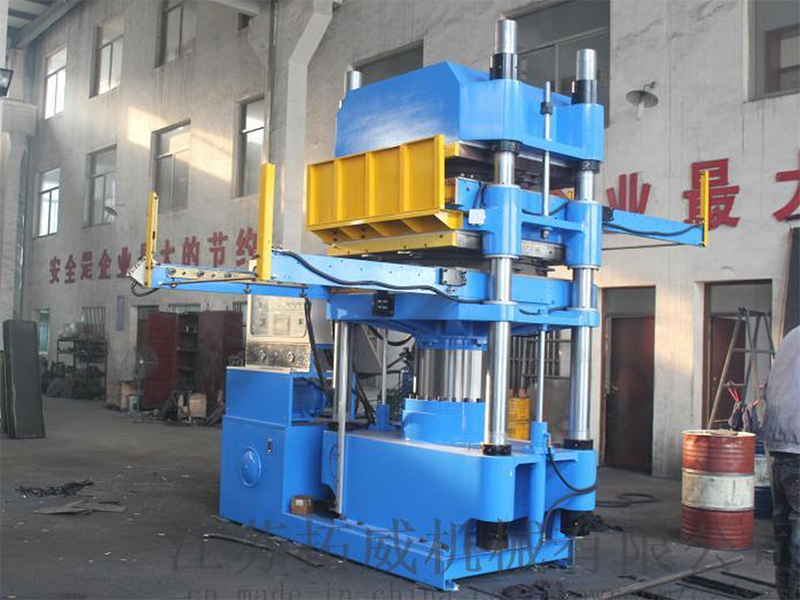

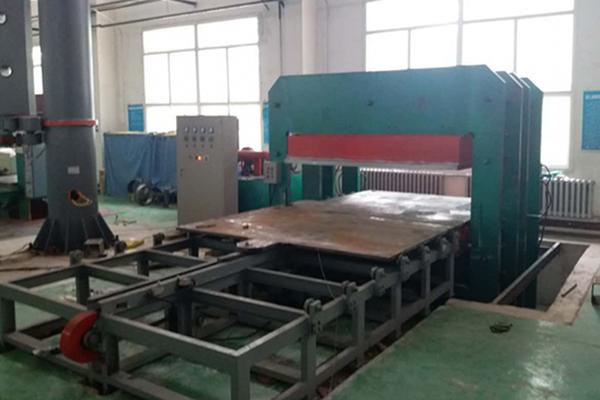

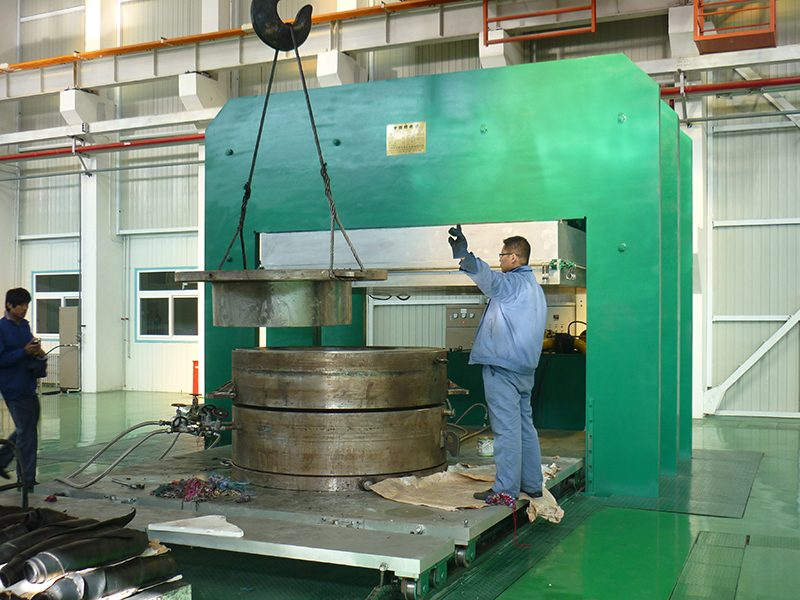

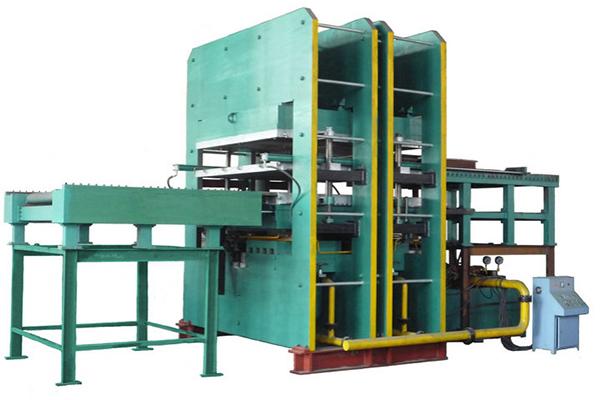

The sliding platform rubber vulcanizing press separates the vulcanized molds and products from machinery in order to conveniently handle the rubber and collect the elements. It is composed of a hydraulic type and mechanical sliding platform.
Our sliding platform rubber vulcanizing press is designed for the production of O-type rings, sealing rings, sealing elements, rubber blankets, rubber strips, bridge bearing, rubber plates, rubber accessories, rubber fender, automotive accessories, tires, pats, special tires for mine, conveyor belt, leather belt, flat belt and other rubber and silicone products.
Product parameters
| Type |
XLB-1200×1200×2 |
| Total Pressure(T) |
315t |
| Plate Size (mm) |
1200×1200 |
| Hot plate spacing(mm) |
200 |
| No. of layer |
2 |
| Piston Stroke(mm) |
400 |
| Plate Pressure(MPa) |
22 |
| Motor power (kw) |
3 |
| Overall dimension(L×W×H)(mm) |
1685×1320×2450 |
| Weight(kg) |
9500 |
| Type |
XLB-1300×2000×1 |
| Total Pressure(T) |
560t |
| Plate Size (mm) |
1300×2000 |
| Daylight(mm) |
400 |
| Layer NO. |
1 |
| Piston Stroke(mm) |
400 |
| Plate Pressure(MPa) |
21.5 |
| Main Motor (kw) |
8 |
| Overall Dimension(L×W×H)(mm) |
2000×1860×2500 |
| Weight(kg) |
17000 |
| Type |
XLB-1200×2500×1 |
| Total Pressure(T) |
750t |
| Plate Size (mm) |
1200×2500 |
| Daylight(mm) |
400 |
| Layer NO. |
1 |
| Piston Stroke(mm) |
400 |
| Plate Pressure(MPa) |
25 |
| Main Motor (kw) |
9.5 |
| Overall Dimension(L×W×H)(mm) |
2560×1700×2780 |
| Weight(kg) |
20000 |
| Type |
XLB-1500×2000×1 |
| Total Pressure(T) |
1000t |
| Plate Size (mm) |
1500×2500 |
| Daylight(mm) |
400 |
| Layer NO. |
1 |
| Piston Stroke(mm) |
400 |
| Plate Pressure(MPa) |
33.5 |
| Main Motor (kw) |
11 |
| Overall Dimension(L×W×H)(mm) |
2810×1550×3325 |
| Weight(kg) |
24000 |
| Type |
XLB-2000×3000×1 |
| Total Pressure(T) |
1800t |
| Plate Size (mm) |
2000×3000 |
| Daylight(mm) |
400 |
| Layer NO. |
1 |
| Piston Stroke(mm) |
400 |
| Plate Pressure(MPa) |
30 |
| Main Motor (kw) |
26 |
| Overall Dimension(L×W×H)(mm) |
2900×3200×2860 |
| Weight(kg) |
66000 |
| Type |
XLB-1400×5700×1 |
| Total Pressure(T) |
2800t |
| Plate Size (mm) |
1400×5700 |
| Daylight(mm) |
400 |
| Layer NO. |
1 |
| Piston Stroke(mm) |
400 |
| Plate Pressure(MPa) |
35 |
| Main Motor (kw) |
43.5 |
| Overall Dimension(L×W×H)(mm) |
2400×5800×3600 |
| Weight(kg) |
110000 |
Product description
1. The hot plate dimension, layers, pressures and other parameters of vulcanizing press can be customized to meet client demands.
2. Some large-scale vulcanizing presses need to be disassembled into several boxes before delivery. We will take photos of these process for client’s convenience. As for large-scale and complex vulcanizing presses, we recommend our clients to use our professional assembly workers for onsite assembly and installation.
3. The vulcanizing press equipped with sliding platform has the function of automatic pressure compensation to automatically compensate for the decrease of pressure during vulcanization.
4. The vulcanizing machine is equipped with an automatic alert system, making it safe and reliable. Upon client request, our machine can be equipped with a PLC control system for fully automatic operation.
Our advantages
1. Our company manufactures many different types of frame plate rubber vulcanizing presses every year. The maximum width of the hot plate can be up to 3600mm and pressure can be up to 134.00 MN.
2. Our company manufactures over 30 pieces of frame plate rubber vulcanizing presses annually with different types and dimensions. All of these are customized to meet client demands.
