Applications
The rubber sole vulcanizing press is mainly used for the vulcanization forming of rubber soles in the manufacturing process for all kinds of shoes.
Product parameters
| Product Model |
XLB-450×450×3 |
| Nominal clamp force (MN) |
1.6 |
| Hot plate dimension (mm) |
450×450 |
| No. of layer |
3 |
| Plunger stroke (mm) |
450 |
| Hot plate pressure per unit area (MPa) |
7.9 |
| Motor power (kW) |
7.5 |
| Hot plate spacing (mm) |
150 |
| Dimension (mm) |
7200×800×2300 |
| Weight (kg) |
15000 |
| Product Model |
XLB-450×600×3 |
| Nominal clamp force (MN) |
1.6 |
| Hot plate dimension (mm) |
450×600 |
| No. of layer |
3 |
| Plunger stroke (mm) |
450 |
| Hot plate pressure per unit area (MPa) |
5.9 |
| Motor power (kW) |
7.5 |
| Hot plate spacing (mm) |
150 |
| Dimension (mm) |
7200×800×2300 |
| Weight (kg) |
16000 |
| Product Model |
XLB-600×600×3 |
| Nominal clamp force (MN) |
1.6 |
| Hot plate dimension (mm) |
600×600 |
| No. of layer |
2 |
| Plunger stroke (mm) |
450 |
| Hot plate pressure per unit area (MPa) |
4.4 |
| Motor power (kW) |
11/5.5 |
| Hot plate spacing (mm) |
200 |
| Dimension (mm) |
15040×1300×2000 |
| Weight (kg) |
18000 |

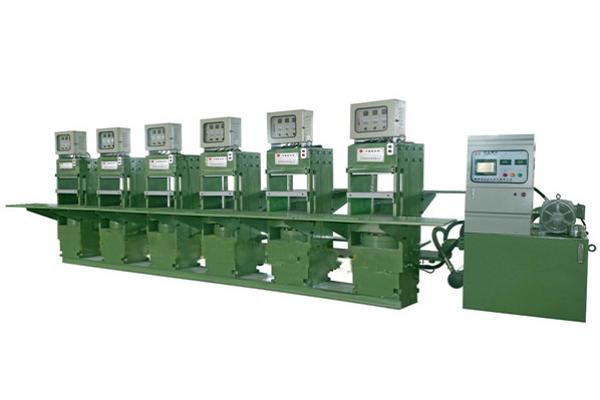

Product description of Rubber Sole Vulcanizing Press
1. The specially designed machine is invulnerable to deformation and brittleness. The adoption of built-in sealed design avoids oil leakage.
2. The adoption of a PLC system maximizes efficiency.
3. Rubber sole vulcanizing presses can be singly operated, or several machines may be operated at different periods.
