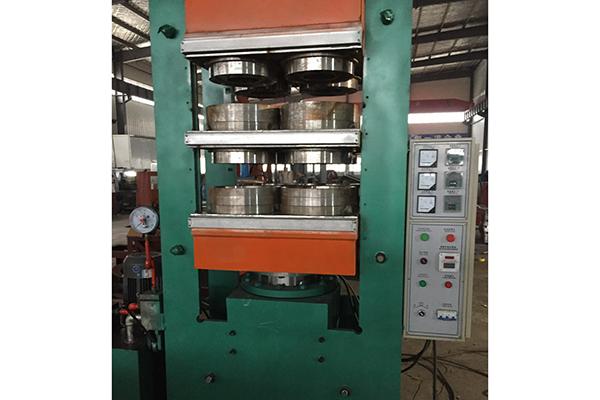

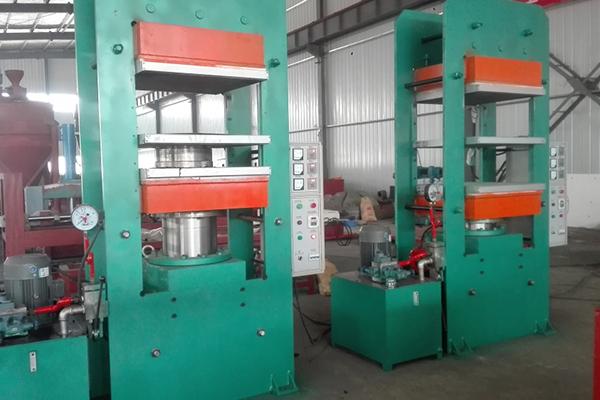

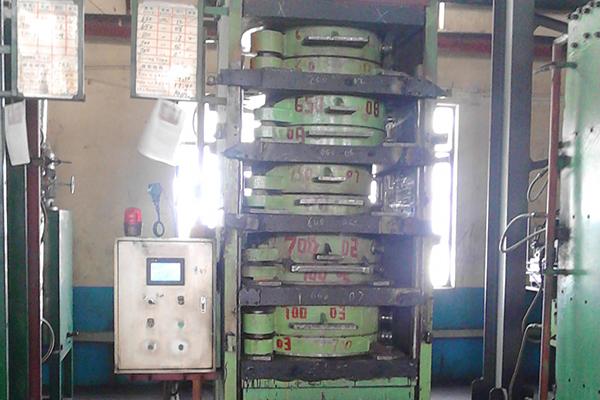

Solid Rubber Tire Vulcanizing Machine

Applications

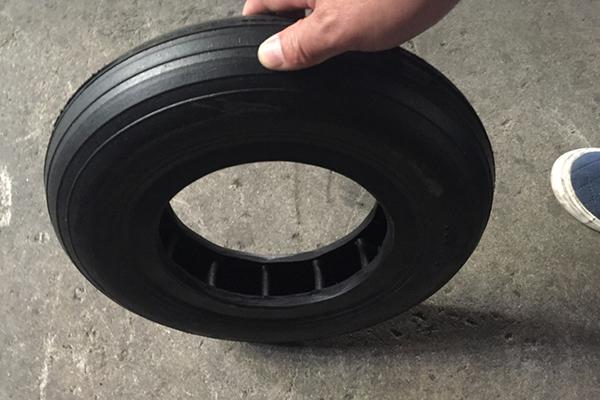

Solid rubber tire vulcanizing machines are intended for use in the production of solid tires, such as trolley tires, forklift tires, special vehicle tires, etc.

Product parameters
Model Type XLB-800x800
Nominal clamp force (MN) 1.60
Hot plate dimension (mm) 800x800
Hot plate spacing (mm) 250
Layers 2
Plunger stroke (mm) 400
Hot plate pressure per unit area (MPa) 2.5
Model type XLB-900x900
Nominal clamp force (MN) 4.00
Hot plate dimension (mm) 900x900
Hot plate spacing (mm) 400
Layers 1
Plunger stroke (mm) 400
Hot plate pressure per unit area (MPa) 4.9
Model type XLB-1450x1450
Nominal clamp force (MN) 10.00
Hot plate dimension (mm) 1450x1450
Hot plate spacing (mm) 700
Layers 1
Plunger stroke (mm) 400
Hot plate pressure per unit area (MPa) 4.7
Model type XLB-1600x1600
Nominal clamp force (MN) 12.00
Hot plate dimension (mm) 1600x1600
Hot plate spacing (mm) 700
Layers 1
Plunger stroke (mm) 400
Hot plate pressure per unit area (MPa) 4.7

Product description
1. The pressure per unit area of the solid rubber tire vulcanizing press is over 40Mpa, which guarantees high quality finished tires.
2. We can manufacture different types of vulcanizing press according to the types of tires specified by customers.
3. This series of vulcanizing presses can be equipped with PLC automatic control system for automatic operation. The exhaust duration, interval and times can all be freely adjusted. The machine also has the function of automatic pressure filling to compensate for the decrease of pressure during vulcanization.

Our advantages
1. Manufacturing tires using vulcanized rubber has been a common practice for many years and this equipment allows for the use of recycled rubber which has become increasingly important as we grow more eco-conscious over time. Since 2015, our company has been exporting 10 pieces of vulcanizing press to middle Asian countries every year.
2. Forklift tire and other solid tires for large vehicles have a rather complex process, which requires a higher pressure per unit area and more layers.
