Applications

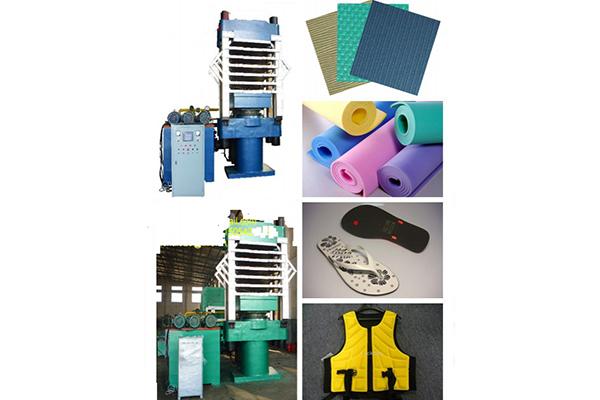

The EVA foaming rubber vulcanizing press is designed for the production of various EVA foam slippers, foam board and other rubber and silicone products.
| Model Technical parameters | XLB-1200x1200x4 |
| Nominal clamp force (MN) | 5.00 |
| Hot plate dimension (mm) | 1200x1200 |
| Hot plate spacing (mm) | 150 |
| Plunger stroke (mm) | 500 |
| Hot plate pressure per unit area (MPa) | 3.4 |
| Main motor power (kw) | 18.5 |
| Model Technical parameters | XLB-1400x1500x6 |
| Nominal clamp force (MN) | 8.00 |
| Hot plate dimension (mm) | 1400x1500 |
| Hot plate spacing (mm) | 150 |
| Plunger stroke (mm) | 800 |
| Hot plate pressure per unit area (MPa) | 3.8 |
| Main motor power (kw) | 26 |
| Model Technical parameters | XLB-1500x1500x6 |
| Nominal clamp force (MN) | 10.00 |
| Hot plate dimension (mm) | 1500x1500 |
| Hot plate spacing (mm) | 150 |
| Plunger stroke (mm) | 150 |
| Hot plate pressure per unit area (MPa) | 4.5 |
| Main motor power (kw) | 33 |
Description of EVA Foaming Rubber Vulcanizing Press
1. The EVA foaming rubber vulcanizing press is produced in column plate or frame plate designs. The features include fast open mold speed and many layers.
2. The wires between the main engine, electronic control cabinet and hydraulic pressure station are all connected before delivery. Users only need to connect the wire between workshop and electronic control cabinet and fill the hydraulic pressure station with hydraulic oil, the machine is then ready to work.
3. We can design and manufacture customized EVA foaming rubber vulcanizing presses to meet our client demands.
4. This series of vulcanizing press can be equipped with a PLC control for fully automated operation.
Our advantage
1. The current largest EVA foaming rubber vulcanizing press manufactured by Shun Cheong is the XLB-1500×1500×5 type with a total weight of 40 tons.
2. Shun Cheong has rich experience in hot plate dimension, fast open mold, automatic control and other processes.
