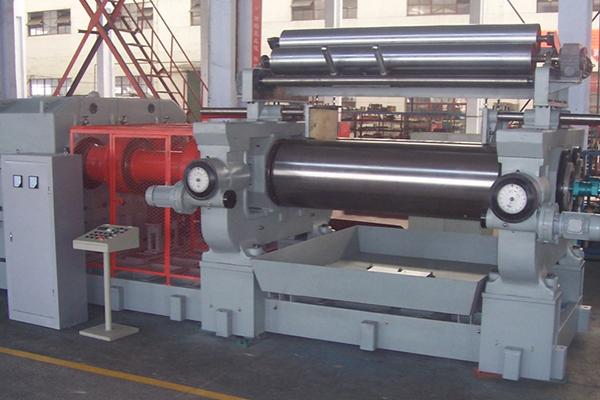

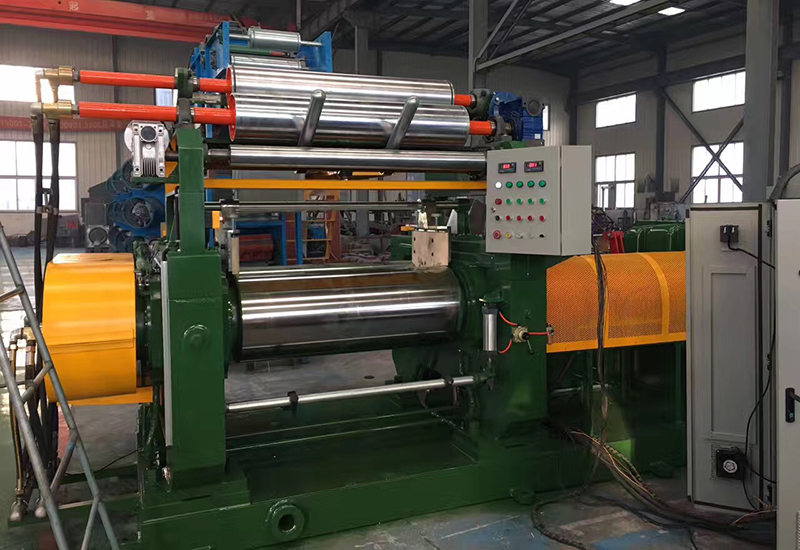

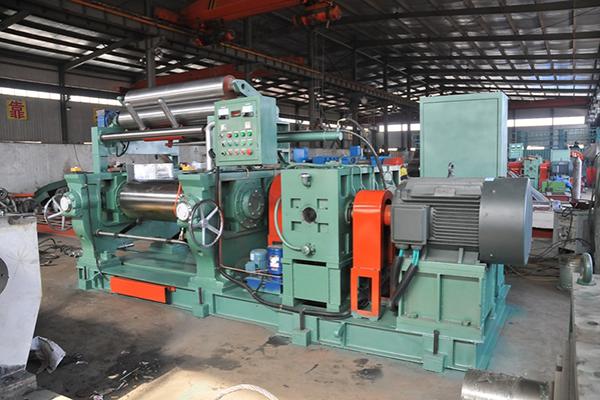

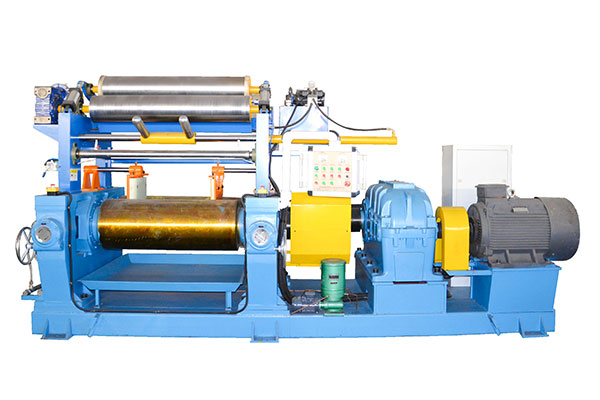

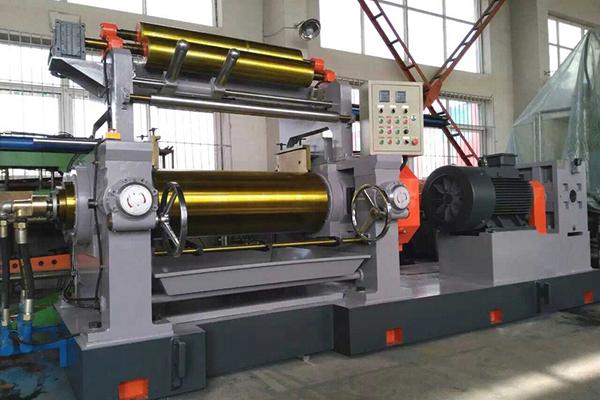

Rubber Blending Mixing Mill

Applications
The rubber blending mixing mill was developed by our engineering team for use in rubber and rubber product industrial applications. Tire factories, cable factories, rubber hose facilities, and rubber seal operations rely on rubber blending mixing mills in order to produce the highest quality rubber products. The machinery is suitable for use outside of rubber applications as well. The mixers are often used to mix products such as oil paints, dyes, ceramics, medicines, and many others.

Product parameters
Technical parameters Model XK-250
Roller diameters(mm) 250
Roller length (mm) 620
Front roller linear velocity
(m/min)
14.1
Roller velocity ratio 1:1.17
Maximum roller spacing (mm) 8
Capacity per batch (kg) 8~15
Motor power (kw) 18.5
Dimension:
L×W×H(mm)
3400×1500
×1650
Technical parameters Model XK-300
Roller diameters(mm) 300
Roller length (mm) 750
Front roller linear velocity
(m/min)
15.1
Roller velocity ratio 1:1.25
Maximum roller spacing (mm) 10
Capacity per batch (kg) 15~20
Motor power (kw) 22
Dimension:
L×W×H(mm)
3500×1600
×1700
Technical parameters Model XK-360
Roller diameters(mm) 360
Roller length (mm) 900
Front roller linear velocity
(m/min)
16.25
Roller velocity ratio 1:1.25
Maximum roller spacing (mm) 10
Capacity per batch (kg) 20~25
Motor power (kw) 30
Dimension:
L×W×H(mm)
3780×1850
×1750
Technical parameters Model XK-400
Roller diameters(mm) 400
Roller length (mm) 1000
Front roller linear velocity
(m/min)
18.65
Roller velocity ratio 1:1.27
Maximum roller spacing (mm) 10
Capacity per batch (kg) 18-35
Motor power (kw) 37
Dimension:
L×W×H(mm)
4350×1850
×1785
Technical parameters Model XK-450
Roller diameters(mm) 450
Roller length (mm) 1200
Front roller linear velocity
(m/min)
24.26
Roller velocity ratio 1:1.27
Maximum roller spacing (mm) 15
Capacity per batch (kg) 25-50
Motor power (kw) 55
Dimension:
L×W×H(mm)
5200×2380
×1840
Technical parameters Model XK-560
Roller diameters(mm) 560/510
Roller length (mm) 1530
Front roller linear velocity
(m/min)
27.72
Roller velocity ratio 1:1.2
Maximum roller spacing (mm) 15
Capacity per batch (kg) 35~50
Motor power (kw) 90
Dimension:
L×W×H(mm)
5845×2284
×1978
Technical parameters Model XK-550
Roller diameters(mm) 550
Roller length (mm) 1500
Front roller linear velocity
(m/min)
27.94
Roller velocity ratio 1:1.22
Maximum roller spacing (mm) 15
Capacity per batch (kg) 50~60
Motor power (kw) 110
Dimension:
L×W×H(mm)
5870×2475
×2045
Technical parameters Model XK-610
Roller diameters(mm) 610
Roller length (mm) 2000
Front roller linear velocity
(m/min)
28.42
Roller velocity ratio 1:1.17
Maximum roller spacing (mm) 15
Capacity per batch (kg) 120-150
Motor power (kw) 160
Dimension:
L×W×H(mm)
7070×2290
×1840
Technical parameters Model XK-660
Roller diameters(mm) 660
Roller length (mm) 2130
Front roller linear velocity
(m/min)
28.6
Roller velocity ratio 1:1.24
Maximum roller spacing (mm) 15
Capacity per batch (kg) 210
Motor power (kw) 245
Dimension:
L×W×H(mm)
7465×3662
×2080
Technical parameters Model XK-710
Roller diameters(mm) 710
Roller length (mm) 2200
Front roller linear velocity
(m/min)
30
Roller velocity ratio 1:1.09
Maximum roller spacing (mm) 15
Capacity per batch (kg) 280-300
Motor power (kw) 280
Dimension:
L×W×H(mm)
7500×3500×1800

Product description
1. The friction gears of the rubber mixing mill sit between the roller and reducer to avoid cooling water and condensate water from entering into lubricating oil trough.

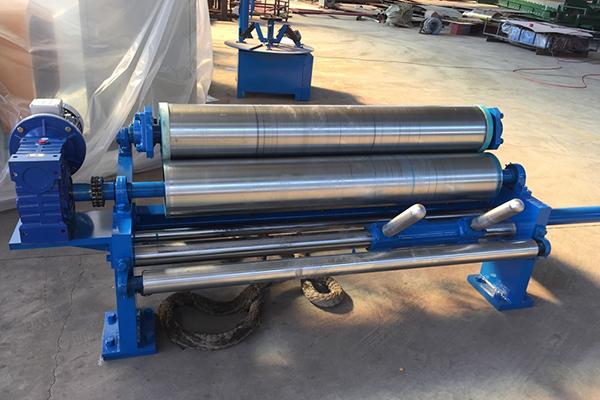

2. The rubber mixing mill is equipped with a stock blender that is usually only used in rubber kneading machines. The advantages of this include a decrease in machine labor intensity and it reduces the mixing time and working efficiency. The hydraulic gluing process also maximizes operation stability.
3. Adoption of a rolling bearing for the roller helps to minimize friction. A labyrinth seal, instead of an oil seal is used to prevent the inconvenience of replacing the framework oil seal while maintaining.
4. The rack, gland and base of the open mill feature a welded structure.
5. The adoption of an integrated base prevents severe vibration. In addition, such design does not necessarily need foundation. The machine can be moved freely on the foundation surface.
6. The rubber mixing mill is equipped with a scram button and foot switch to maximize safety.
7. We adopt the latest national safety standards 'GB20055-2006 Open Mill Safety Standards’, which are generally the same as European CE Standards. The braking length of the roller is 1/6 rotation, maximizing safety.

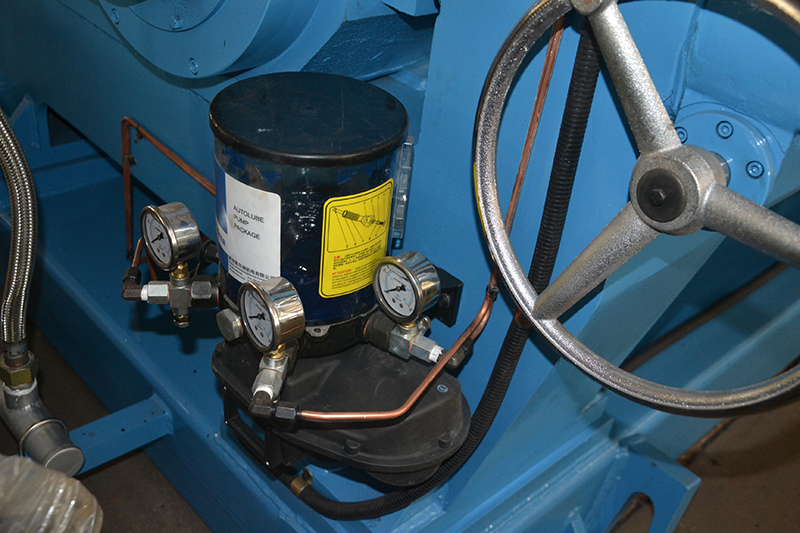

8. Electronic control cabinet is placed on the base which provides convenience for adjustment and installation. Once connected with a dynamic power, cooling water and lubrication oil for reducer, the rubber mixing mill can operate without issue.
9. We provide custom services for clients.

Our advantages
1. Shun Cheong fully considers the end users during each process of the design, manufacturing, and maintenance of the rubber mixing mill. For example, the assembly and installation of old rubber mixing mills usually takes 6 days and 7 processes, while the new one takes only 3 hours and 4 processes, which is very convenient.
2. Shun Cheong manufactures about 40 pieces of different types of rubber mixing mills every year and we provide custom services to meet client demands.
