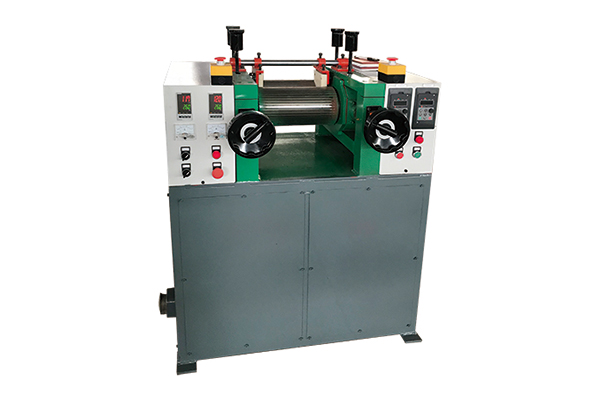

Lab Mixing Mill

Request a Quote
Applications

Our laboratory mixing mill ensures that natural or synthetic rubber is evenly blended with other raw materials. With this lab mixing mill, all of the raw materials can be perfectly mixed in accordance with required specifications.

Specifications
Model XK-160
Roll size 160×320
Roll friction ratio 1:1.35
Front roll speed 17.85r/min
Rolls spacing 0-4mm
Capacity per batch 1-15 Kg
Motor power 5.5
Overall Dimension (L×W×L) 1500mm×750mm×1500mm
Remark Electric heating can adjust temperature between room temperature to 220℃
Bearing type drive
Sealed by high temperature resistant seals, eliminating oil leakage
Features
  • The lab mixing mill can be equipped with infrared unit to ensure operator's safety during the process;
  • This laboratory mixing mill can be provided with electric heating system, steam heating system or water cooling system;
  • The rubber mixing machine allows operator to control it at front or back side, and there is an emergency stop device placed under the lab mixing mill to respond to an emergency situation thereby ensuring the safety of personnel;

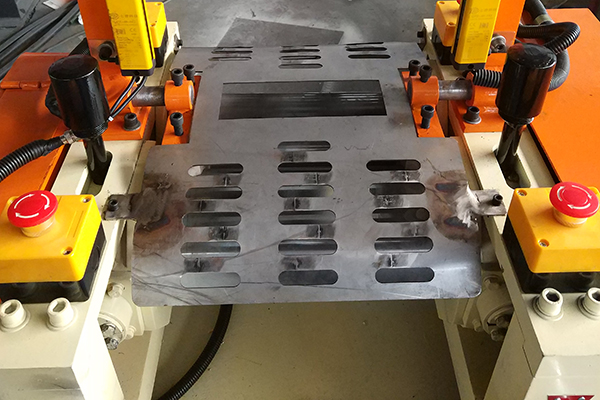

  • Safety protection cover can be added over the rolls to ensure the safety of operator;
