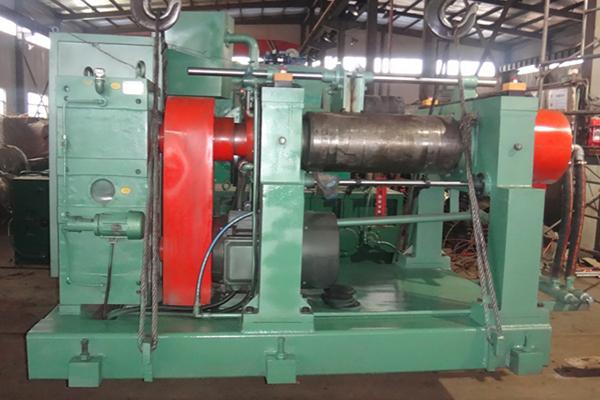

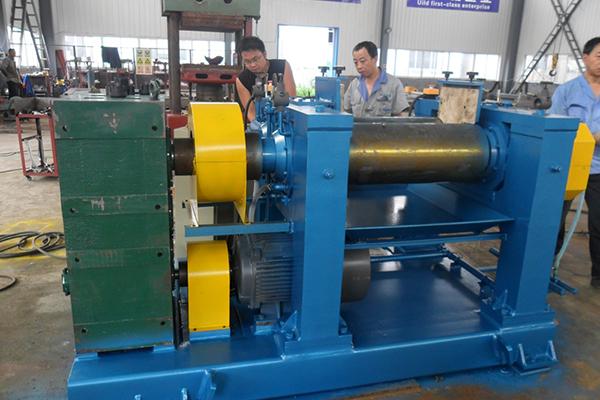

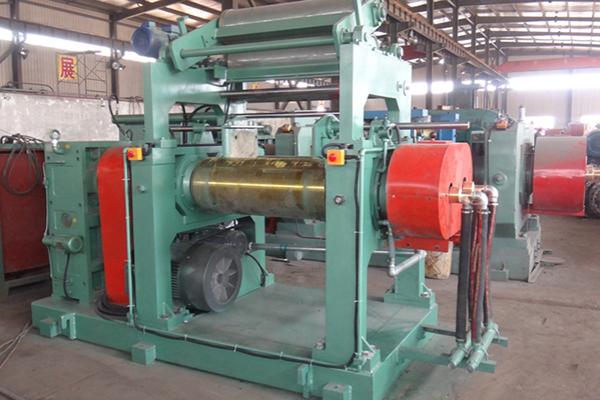

Compact Rubber Mixing Mill

Request a Quote
Applications

The compact rubber mixing mill is widely used in the milling process of rubbers and rubber products. Production operations for products such as tires, cables, rubber hoses, belts, shoes, calcium-resin products, and many other industrial applications would not be possible without rubber mixing mills. The compact mixer is also suitable for mixing materials such as paints, dyes, ceramics, medicines, and many more.

Product parameters
Technical parameters Model XK-360
Roller diameters(mm) 360
Roller length (mm) 900
Roller velocity ratio 1:1.25
Maximum roller spacing (mm) 10
Capacity per batch (kg) 20~25
Motor power (kw) 30
Dimension:
L×W×H(mm)
3780×1850
×1750
Technical parameters Model XK-400
Roller diameters(mm) 400
Roller length (mm) 1000
Roller velocity ratio 1:1.27
Maximum roller spacing (mm) 10
Capacity per batch (kg) 18-35
Motor power (kw) 37
Dimension:
L×W×H(mm)
4350×1850
×1785
Technical parameters Model XK-450
Roller diameters(mm) 450
Roller length (mm) 1200
Roller velocity ratio 1:1.27
Maximum roller spacing (mm) 15
Capacity per batch (kg) 25-50
Motor power (kw) 55
Dimension:
L×W×H(mm)
5200×2380
×1840
Technical parameters Model XK-560
Roller diameters(mm) 560/510
Roller length (mm) 1530
Roller velocity ratio 1:1.2
Maximum roller spacing (mm) 15
Capacity per batch (kg) 35~50
Motor power (kw) 90
Dimension:
L×W×H(mm)
5845×2284
×1978
Product description
  • The compact rubber mixing mill occupies a small area and the overall length is only 3/4 that of normal rubber mixing mills.

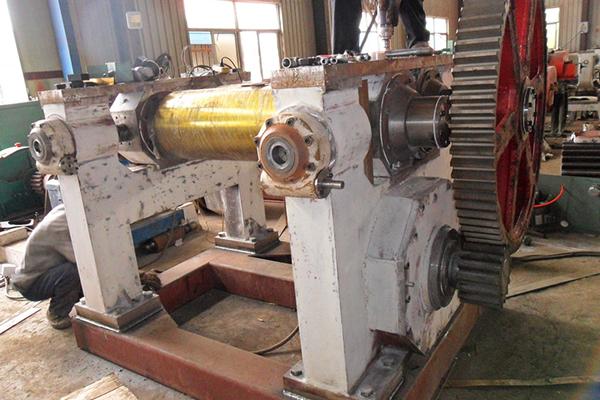

  • The rubber blending mixing mill is equipped with a hardened gear reducer. Gears are all treated by carburizing and quenching techniques. The gear surface is carefully grinded as well. Such processes increase machining accuracy, wear-resistance and reduce noise.
