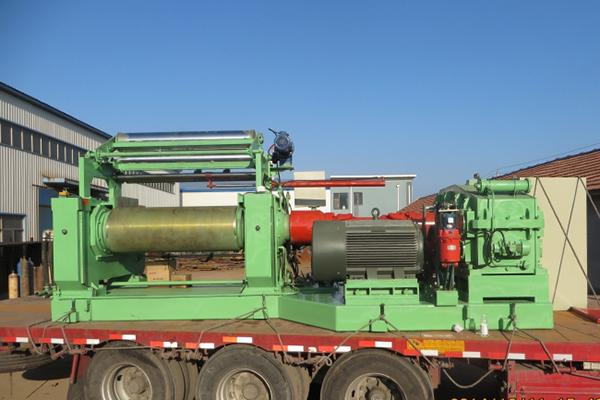

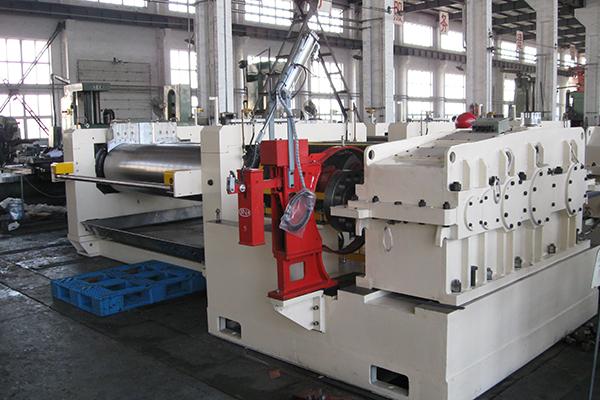

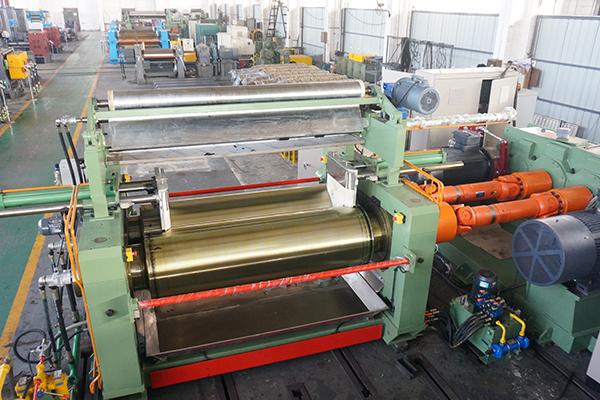

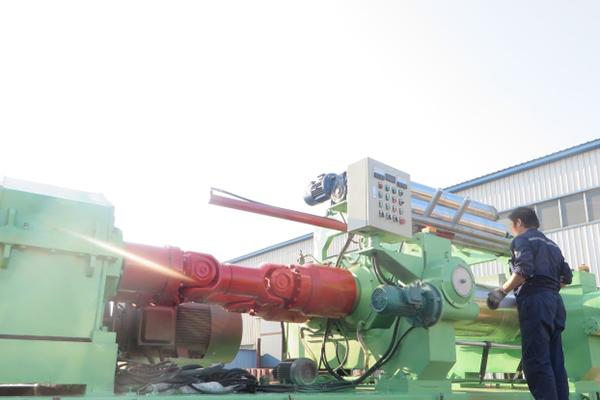

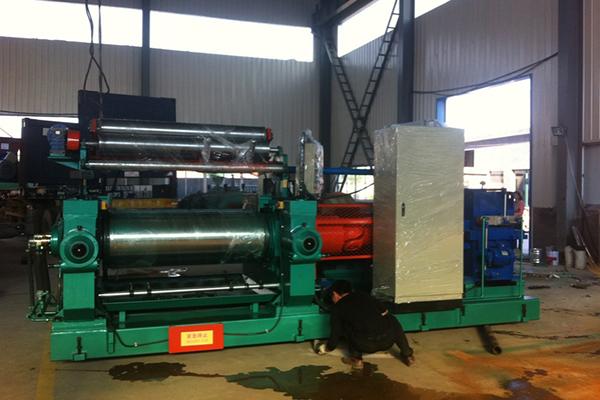

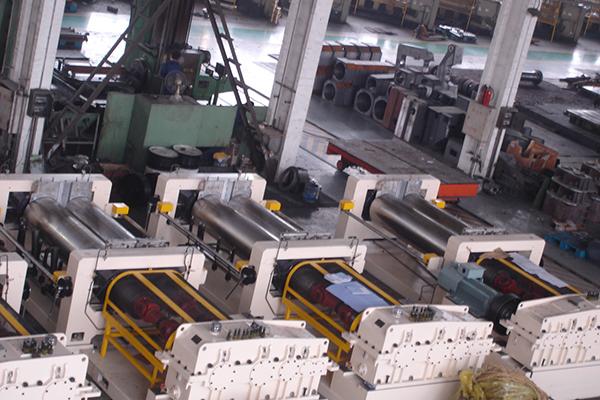

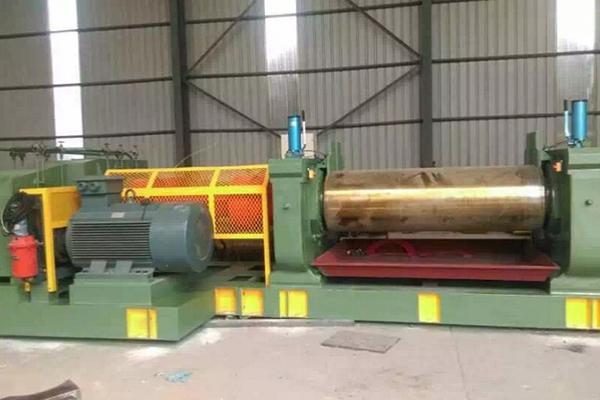

Large Rubber Mixing Mill

Request a Quote
Applications

The large rubber mixing mill is driven by two methods: single-drive dual output and dual-drive dual output modes. This equipment provides mixing capacity 10-20% higher than that of traditional mixing mills.
Large-scale dual output rubber mixing mills are widely applied in milling processes for rubbers and rubber products such as tires, cables, hoses, belts, and many others. The mixers are also suitable for use with other types of products such as dyes, medicines, and ceramic goods.

Product parameters
Technical parameters Model XK-550
Roller diameters(mm) 550
Roller length (mm) 1500
Front roller linear velocity
(m/min)
27.94
Roller velocity ratio 1:1.22
Maximum roller spacing (mm) 15
Capacity per batch (kg) 50~60
Motor power (kw) 110
Dimension:
L×W×H(mm)
5870×2475
×2045
Technical parameters Model XK-610
Roller diameters(mm) 610
Roller length (mm) 2000
Front roller linear velocity
(m/min)
28.42
Roller velocity ratio 1:1.17
Maximum roller spacing (mm) 15
Capacity per batch (kg) 120-150
Motor power (kw) 160
Dimension:
L×W×H(mm)
7070×2290
×1840
Technical parameters Model XK-660
Roller diameters(mm) 660
Roller length (mm) 2130
Front roller linear velocity
(m/min)
28.6
Roller velocity ratio 1:1.24
Maximum roller spacing (mm) 15
Capacity per batch (kg) 210
Motor power (kw) 245
Dimension:
L×W×H(mm)
7465×3662
×2080
Technical parameters Model XK-710
Roller diameters(mm) 710
Roller length (mm) 2200
Front roller linear velocity
(m/min)
30
Roller velocity ratio 1:1.09
Maximum roller spacing (mm) 15
Capacity per batch (kg) 280-300
Motor power (kw) 280
Dimension:
L×W×H(mm)
7500×3500×1800
